Considering Failure of Certain Members in RF-/DYNAM Pro – Equivalent Loads

What should be considered when using a failure of columns under tension in the RF‑/DYNAM Pro – Equivalent Loads add-on module?

Answer:

In order to consider the failure of certain members when using RF‑/DYNAM Pro – Equivalent Loads, proceed as follows:

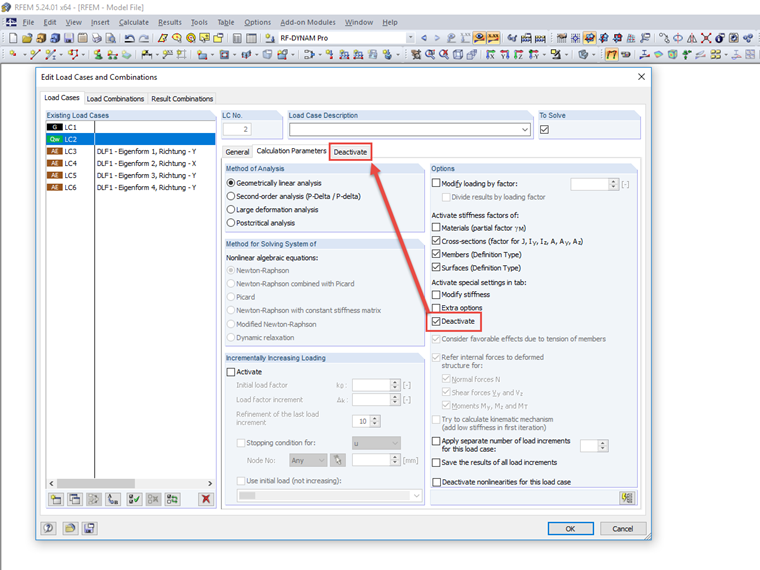

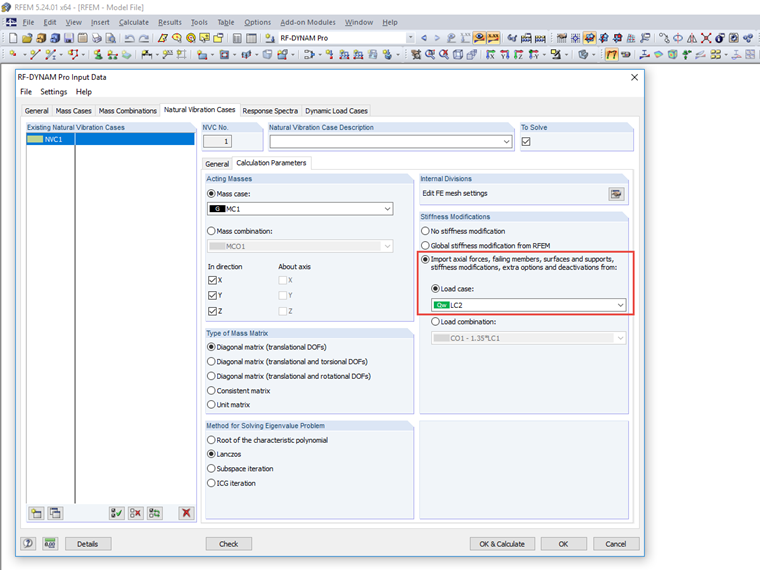

  1. Deactivating the corresponding members for the eigenvalue determination within the corresponding load case; see Image 01 (add-on module, tab Natural Vibration Cases, Calculation Parameters) and Image 02 (main program, Calculation Parameters, Deactivate and select).
    Natural Vibration Cases - Stiffness Modifications
    1 Natural Vibration Cases - Stiffness Modifications
    Deactivating Members in Original Load Case
    2 Deactivating Members in Original Load Case

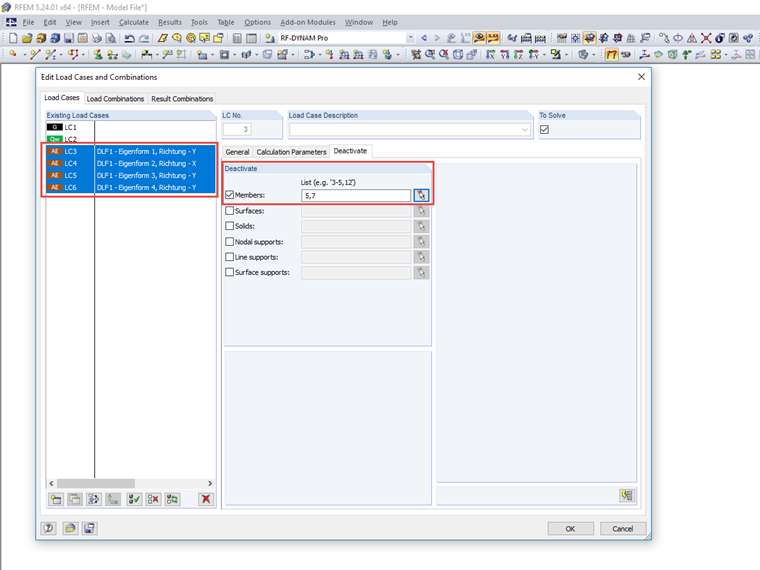

  2. Determining dynamic load cases from RF‑/DYNAM Pro by using the calculation, then deactivating the corresponding member in the main program within the global calculation parameters of the dynamic load cases; see Image 03.
    Deactivating Members in Dynamic Load Cases
    3 Deactivating Members in Dynamic Load Cases
