Concentrated Moment in Middle of Surface

How can I define a concentrated moment in the middle of a surface?


Answer:

A concentrated moment must act on a node in the program. Accordingly, you have to model a node at the corresponding location and define the concentrated moment there.

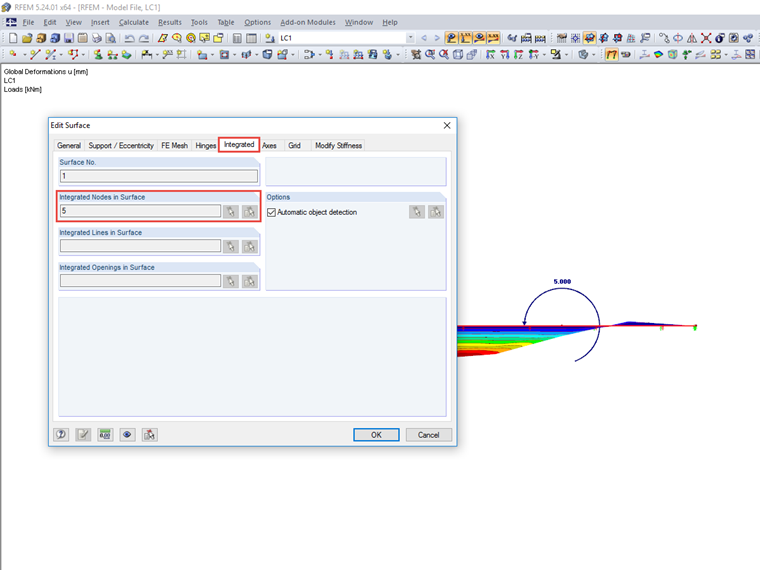

If the node is modeled correctly, it is automatically integrated into the surface by default. You can check this in the "Edit Surface" dialog box, "Integrated" tab; see the image.
