Answer:

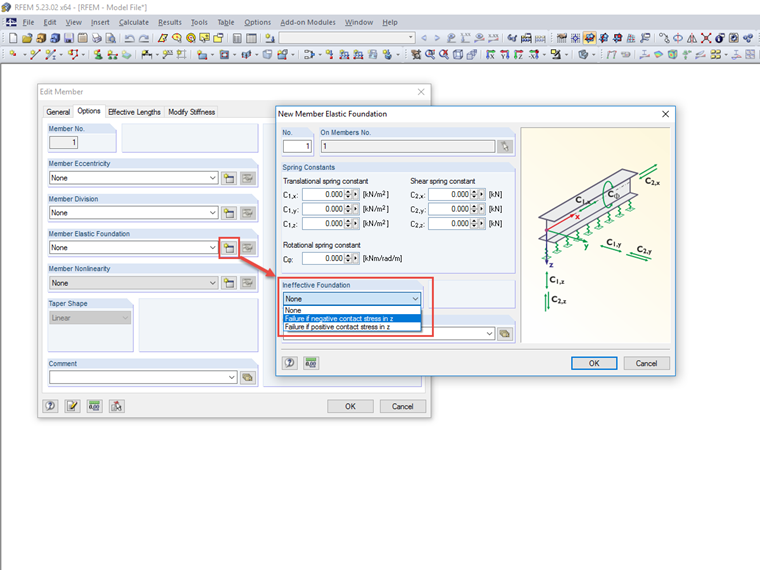

Define the ineffective foundation in the "New Member Elastic Foundation" dialog box; see the image.
Question
How can I enter a member elastic foundation that only acts in one direction?
