Visibilities can be created using the RF‑COM 3 / RS‑COM 6 interfaces; the IrfView interface is used for this purpose. The elements that should belong to the visibility can be selected with the rfSelectObjects function:
Sub set_visibility()' get interface from the opened model and lock the licence/programDim iModel As RFEM3.IrfStructure3Set iModel = GetObject(, "RFEM3.Structure")iModel.rfGetApplication.rfLockLicence
On Error GoTo e
' get interface for modeldataDim iModdata As RFEM3.IrfStructuralData4Set iModdata = iModel.rfGetStructuralData
iModdata.rfSelectObjects STR_MEMBER, "1-2"iModdata.rfSelectObjects STR_SURFACE, "6,14,17"
' get interface for viewDim iView As RFEM3.IrfView2Set iView = iModel.rfGetActiveView iView.rfSetPartialView "test|view"
' select partial viewiView.rfSelectPartialView "test|view", PVM_SHOW, True, True
e: If Err.Number <> 0 Then MsgBox Err.description, , Err.Source
iModel.rfGetApplication.rfUnlockLicenceSet iModel = Nothing
End Sub

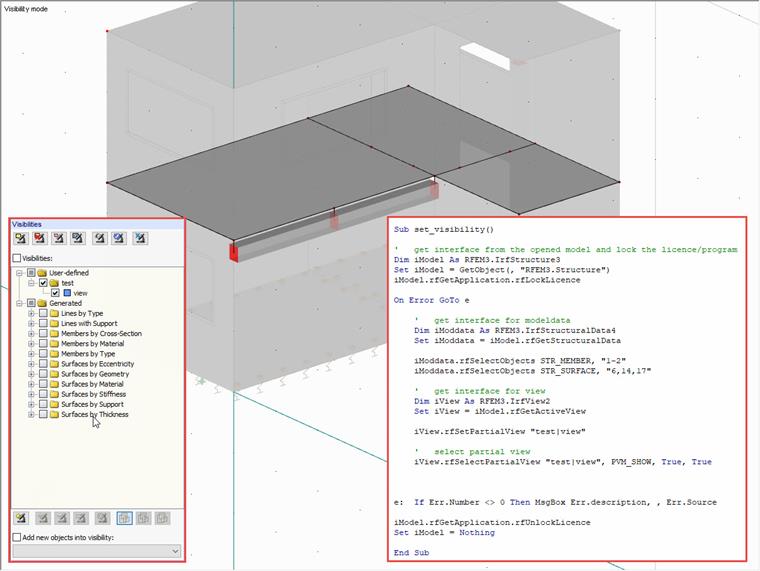

In the example, Surface 6, Surface 14, and Surface 17 are selected together with Member 1 and Member 2. Then, the visibility of these elements is created and named "view". The visibility "view" is in the "test" group. It is created with the delimiter "|". After the visibility has been created, it is still selected or displayed; in this case, PVM_SHOW is of the "RF_PARTIAL_VIEW_MODE" type, which can also remove the visibility. The function can also specify whether the elements are displayed in the background.
