Assigning Surfaces to Result Members for Internal Force Integration

How can I assign certain surfaces to a result beam in order to integrate internal forces?


Answer:

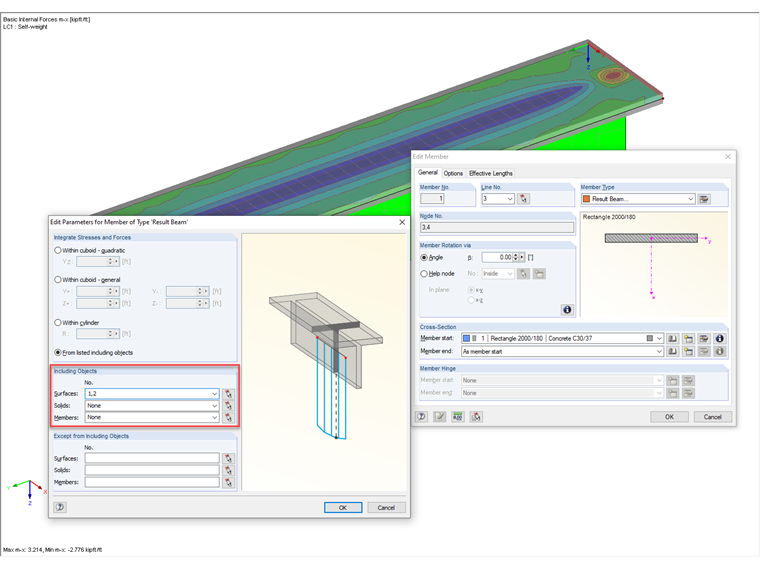

In the detail settings of the respective result beam, you can specify which objects (members, surfaces, or solids) are to be considered by this result beam.

For example, if an unexpected result is displayed for the result beam, you should check in this dialog box whether the integration area has been set correctly for the objects.


Author

Mr. Kieloch provides technical support to our customers and is responsible for development in the area of reinforced concrete structures.
