Cable Length Specification in RF-FORM-FINDING

Is it also possible to specify a cable length in RF‑FORM‑FINDING?


Answer:

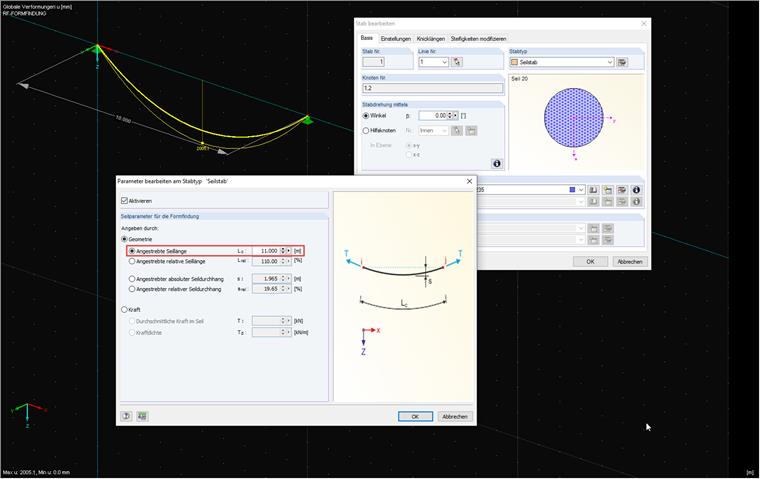

In addition to a prestressing force or the target cable sag, it is also possible to specify the cable length, as shown in Image 01.

The program then tries to fit the cable subjected to the acting force (a load case of the "form-finding" type with a dead load, for example) in a way so that the length corresponds to the specified length.
