Evaluation of the internal forces of a specific FE node

How can I evaluate the internal forces of a particular FE node in RFEM?

Answer:

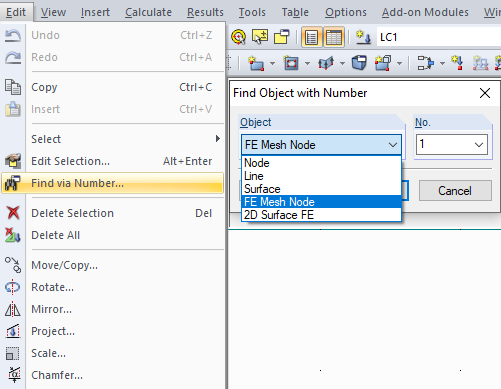

First, it is necessary to determine the position of the FE node. The easiest way is to click [Edit] - [Find via Number] (Image 01).

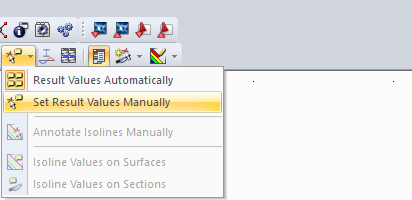

Then, you can define the found FE node by manually setting the result value (Image 02).

The process is explained in the attached video.
