Area Loads on Openings in RFEM

How does RFEM apply a surface load if there is an opening in the loaded surface?


Answer:

If there are openings in the surfaces, the surfaces in the opening areas are not loaded. The loads in the area of the openings are subtracted from the entire load.

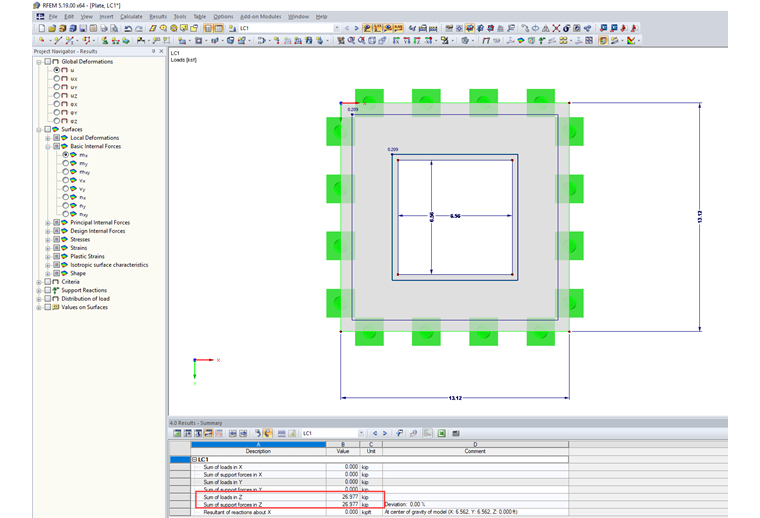

The image shows a rectangular surface with a rectangular opening. In result table 4.0, the correct sum of loads is displayed.
