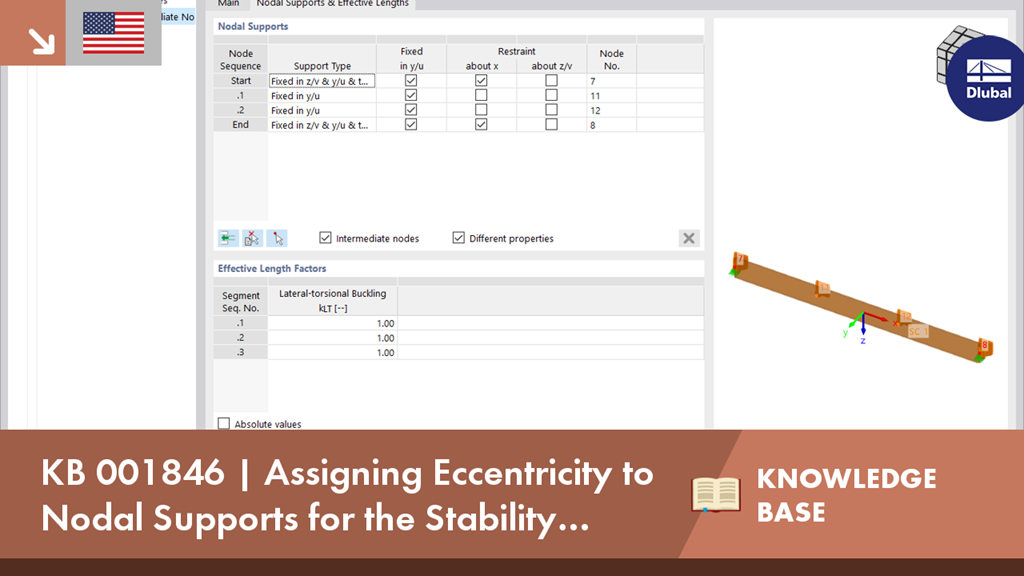

In this VIDEO an RFEM 6-specific function is presented, by which you can assign an eccentricity to the nodal supports and thus influence the determination of the effective length considered in the stability analysis.
KB 001846 | Assigning Eccentricity to Nodal Supports for the Stability Verification of Members
Do you have any questions?
![Timber Beam](/en/webimage/040675/3517395/1_MODEL.png?mw=512&hash=1b2b98d7f5da3b1e31bac986826dfc11fa287bb9)
For the stability verification of members using the equivalent member method, it is necessary to define effective or lateral-torsional buckling lengths in order to determine a critical load for stability failure. In this article an RFEM 6-specific function is presented, by which you can assign an eccentricity to the nodal supports and thus influence the determination of the critical bending moment considered in the stability analysis.
