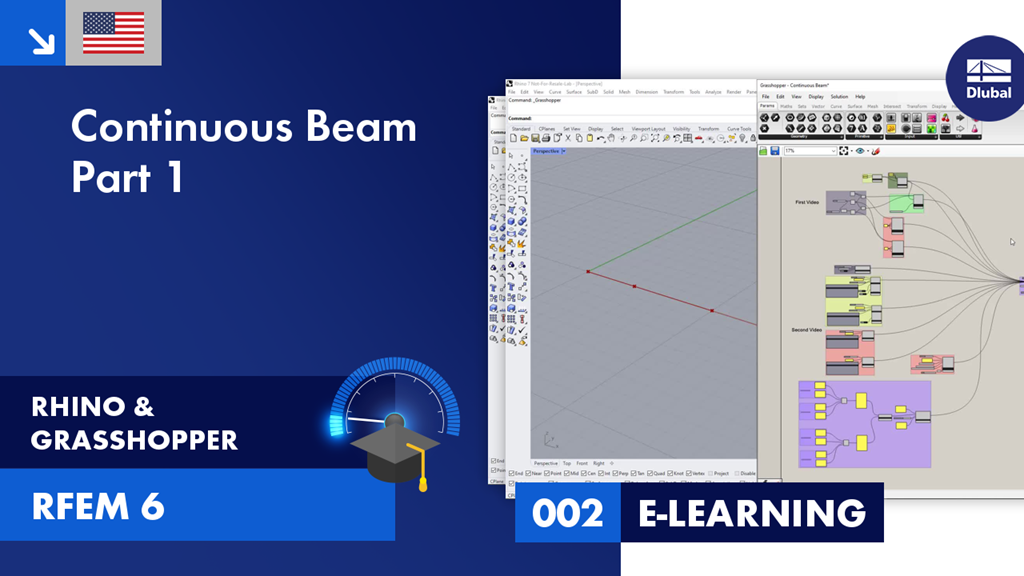

Our first example will be about a continuous beam, and it will be divided into two videos.
In this video, we will create the geometry, members, cross-section and material, and assign supports. After that, we will export the results to RFEM 6.
In the second video, we will create static analysis settings, load cases, design situations, and load combinations; afterwards, we will apply the load on the members.
Time Schedule:
00:00 Introduction
00:56 Rhino & Grasshopper
02:16 Geometry
05:50 Members
07:10 Section & Material
08:32 Supports
11:15 Groups
12:51 Export
