For a timber connection, as shown in Figure, you can take into account the torsional spring rigidity (spring stiffness for rotation) of the connections. You can determine it by means of the slip modulus of the fastener and the polar moment of inertia of the connection.

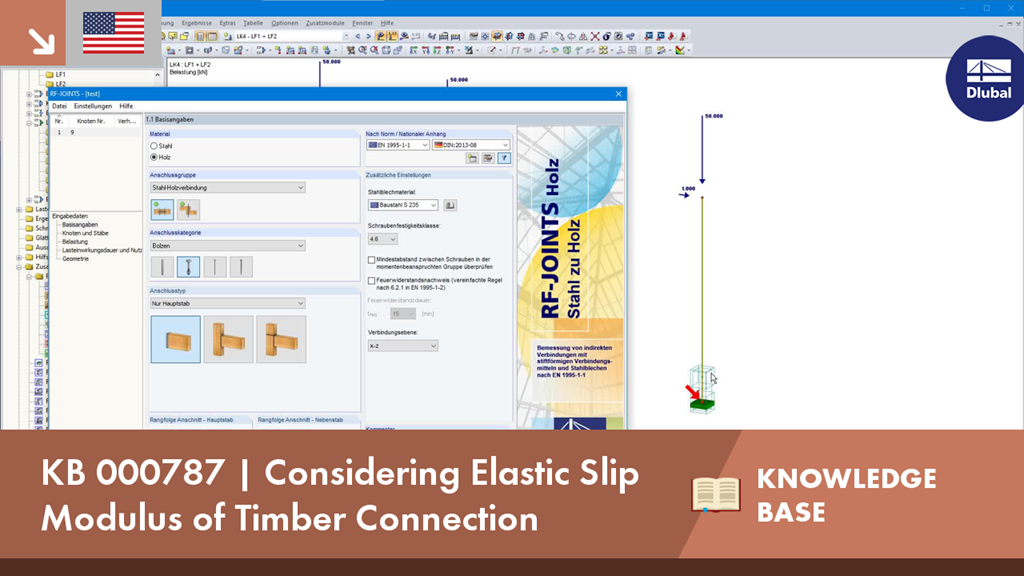

KB 000787 | Considering Elastic Slip Modulus of Timber Connection
- Eurocode 5: Design of Timber Structures - Part 1-1: General – Common Rules and Rules for Buildings; DIN EN 1995-1-1:2010-12
- National Annex - Eurocode 5: Design of Timber Structures - Part 1-1: General - Common Rules and Rules for Buildings; DIN EN 1995‑1‑1/NA:2013‑08
- Eurocode 5: Design of Timber Structures - Part 1-1: General - Common Rules and Rules for Buildings - National Specifications for the Implementation of OENORM EN 1995-1-1, National Comments and National Supplements; ÖNORM B 1995-1-1:2015-06-15
