RF-STEEL NBR

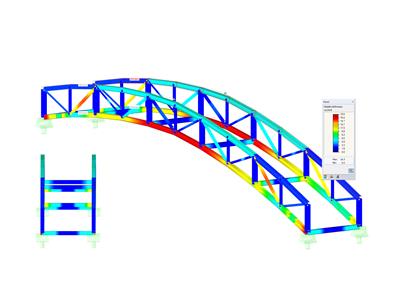

RF-STEEL NBR is an add-on module for RFEM 5 that allows for the design and analysis of steel structures according to the Brazilian standards (NBR). This module provides you with advanced features for the design and analysis of steel structures to ensure they comply with the specific requirements of the NBR standards.

Design of members according to the Brazilian standard ABNT NBR 8800:2008

Total items: 2

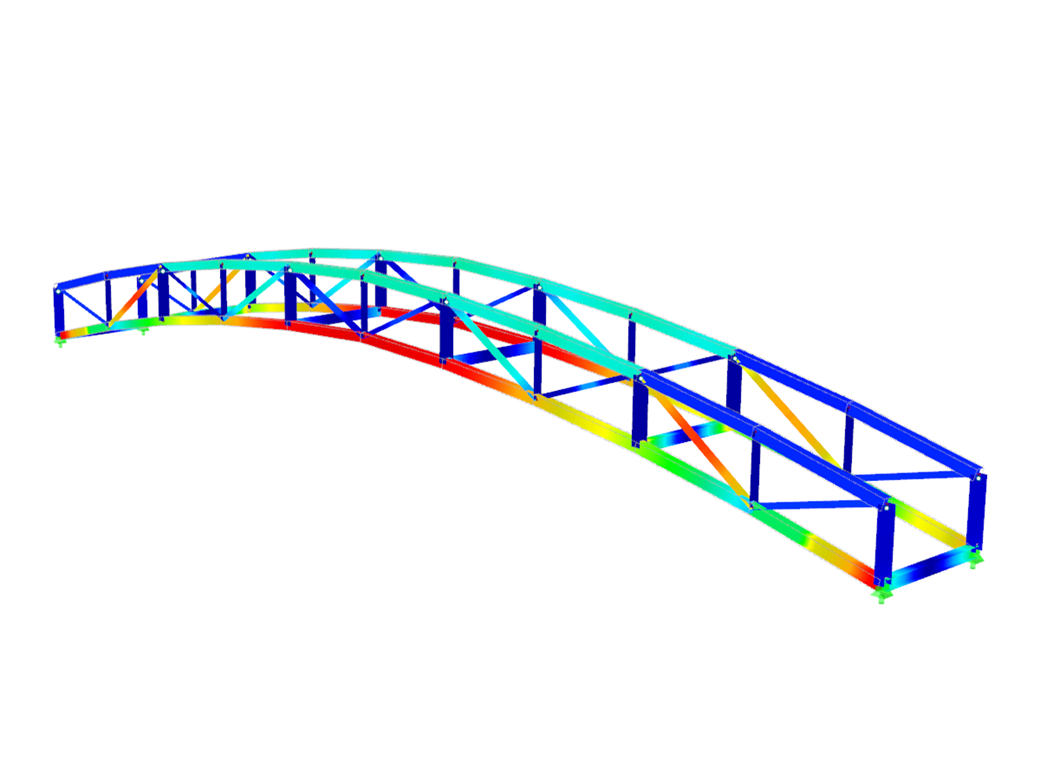

RF-/STEEL NBR Add-on Module for RFEM/RSTAB | Design of Steel Members According to ABNT NBR 8800: 2008

RF-/STEEL NBR | Features

Design of tension, compression, bending, shear, combined internal forces, and torsion
Stability analysis for flexural buckling, torsional buckling, and lateral-torsional buckling
Optional application of discrete lateral supports to beams

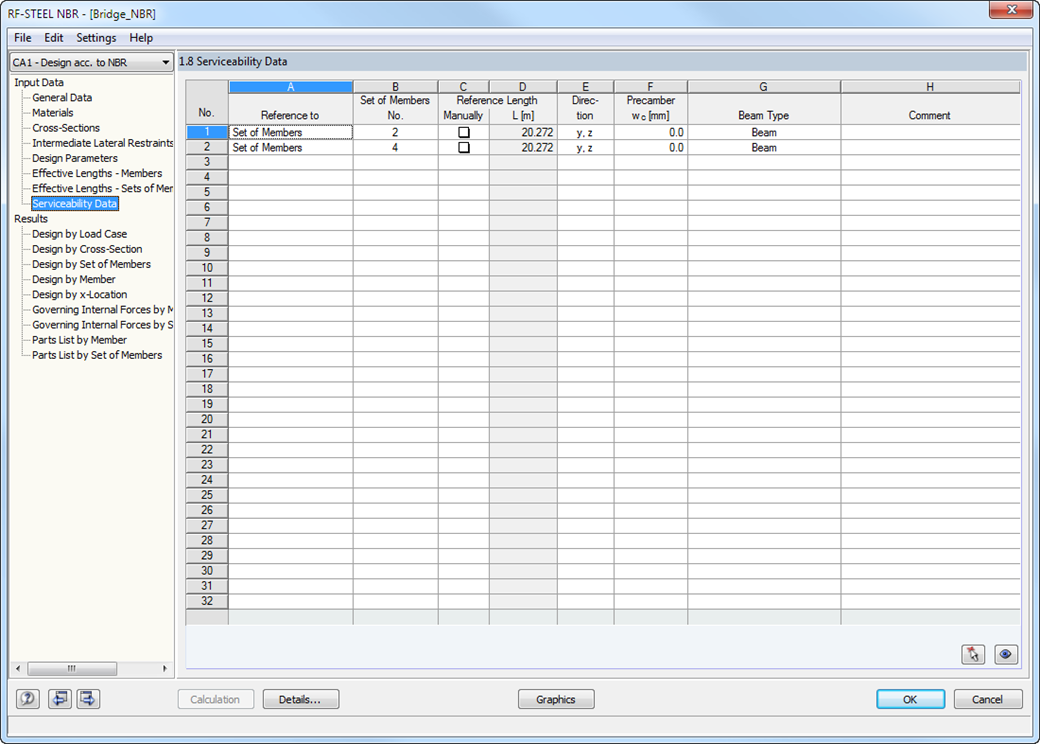

Deformation analysis (serviceability)
Cross-section optimization
Wide range of cross-sections available, such as rolled I-sections, channel sections, rectangular hollow sections, angles, T-sections. Welded sections: I-shaped (symmetrical and asymmetrical about major axis), channel sections (symmetrical about major axis), rectangular hollow sections (symmetrical and asymmetrical about major axis), angles, round pipes, and round bars
Clearly arranged result tables
Detailed result documentation including references to design equations of the used standard
Various filter and sorting options of results, including result lists by member, cross-sections, x-location, or by load case, load and result combination
Result table of member slenderness and governing internal forces
Parts list with weight and solid specifications
Seamless integration in RFEM/RSTAB

Working with RF-/STEEL NBR

It is necessary to enter material, load, and combination data in RFEM/RSTAB in compliance with the design concept specified by Brazilian standard ABNT NBR 8800:2008. The RFEM/RSTAB material library already contains the relevant materials.

The RF-/STEEL NBR add-on module requires members and sets of members as well as load cases, load combinations, and result combinations to be designed.

In the subsequent input windows, you can adjust preset definitions of lateral intermediate supports and effective lengths.
