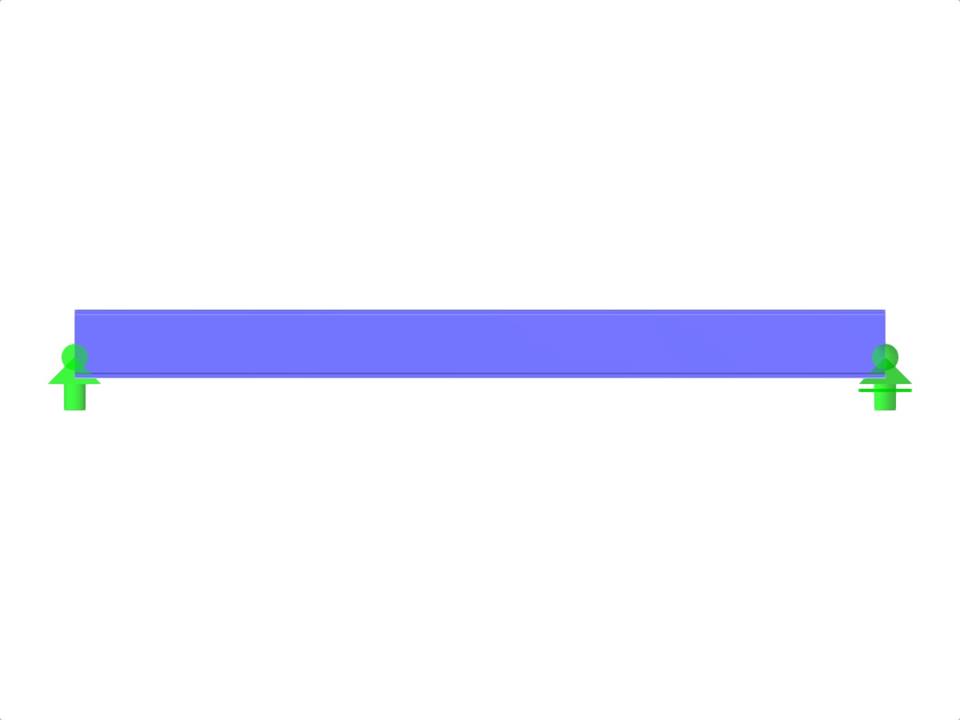

This model analyzes the combined compression and bending moment for an ASTM A992 W14x99 beam using AISC 2022 standards. It evaluates the beam's compressive and flexural strengths based on second-order analysis, including P-𝛿 effects, to determine if it can support specified axial forces and moments. The analysis references AISC Manual tables for verification.
Verification of Combined Compression and Bending in AISC 2022
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.629 t |
| Dimensions | 4.267 x 0.000 x 0.000 m |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
