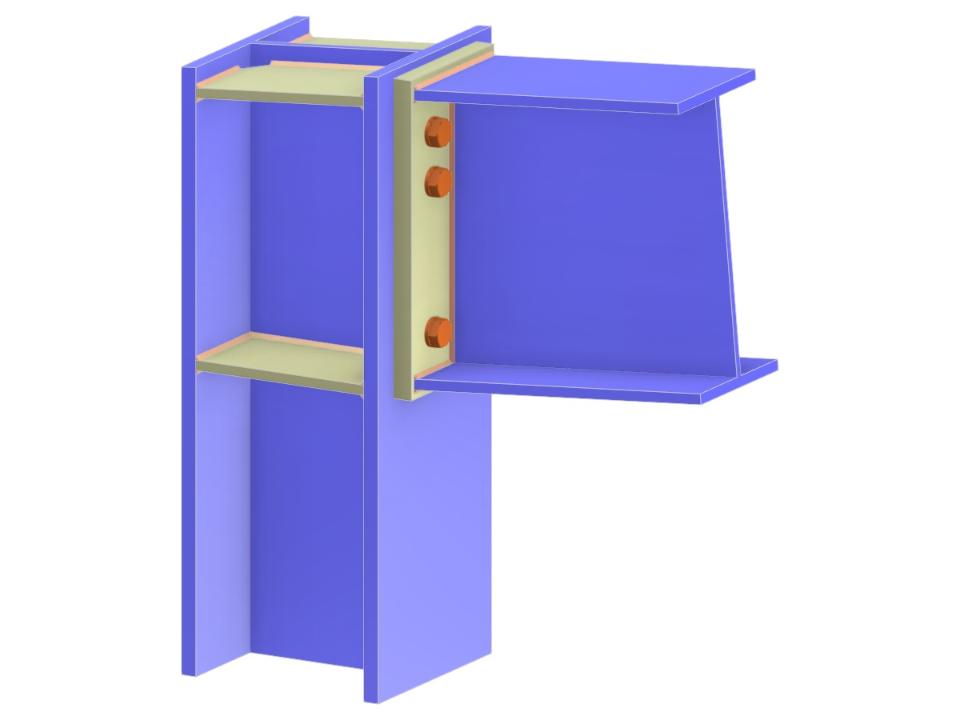

Beam to Column | Full Depth End Plate | Column Stiffener | Bolted | Fixed Beam
Beam to Column
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.050 tons |
| Dimensions (Metric) | 0,438 x 0,498 x 0,000 m |
| Dimensions (Imperial) | 1.44 x 1.63 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
