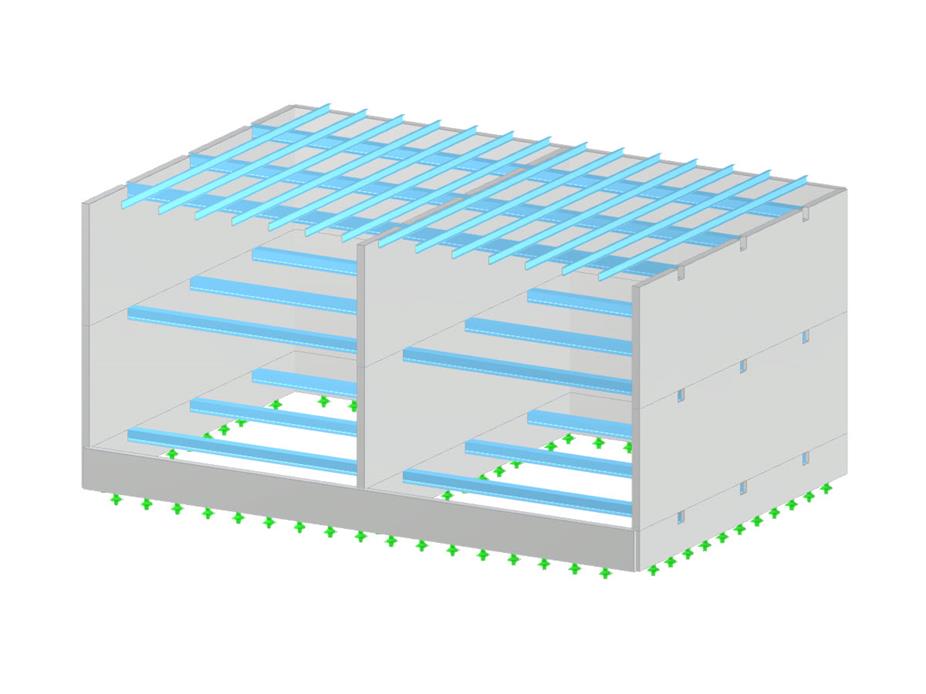

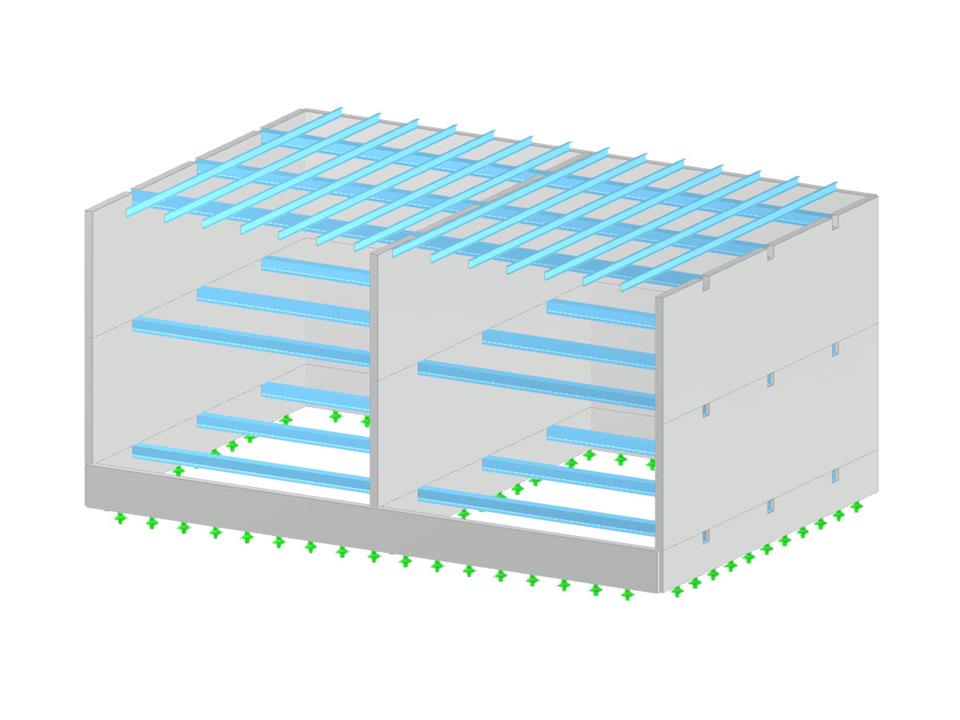

Download the model of a building here, including various member contacts, and open it with the structural FEA software RFEM 6.
Different Modeling of Contact Between Members
| Number of Nodes | 379 |
| Number of Lines | 592 |
| Number of Members | 348 |
| Number of Surfaces | 85 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 186.797 tons |
| Dimensions (Metric) | 15.000 x 7.195 x 10.000 m |
| Dimensions (Imperial) | 49.21 x 23.61 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
