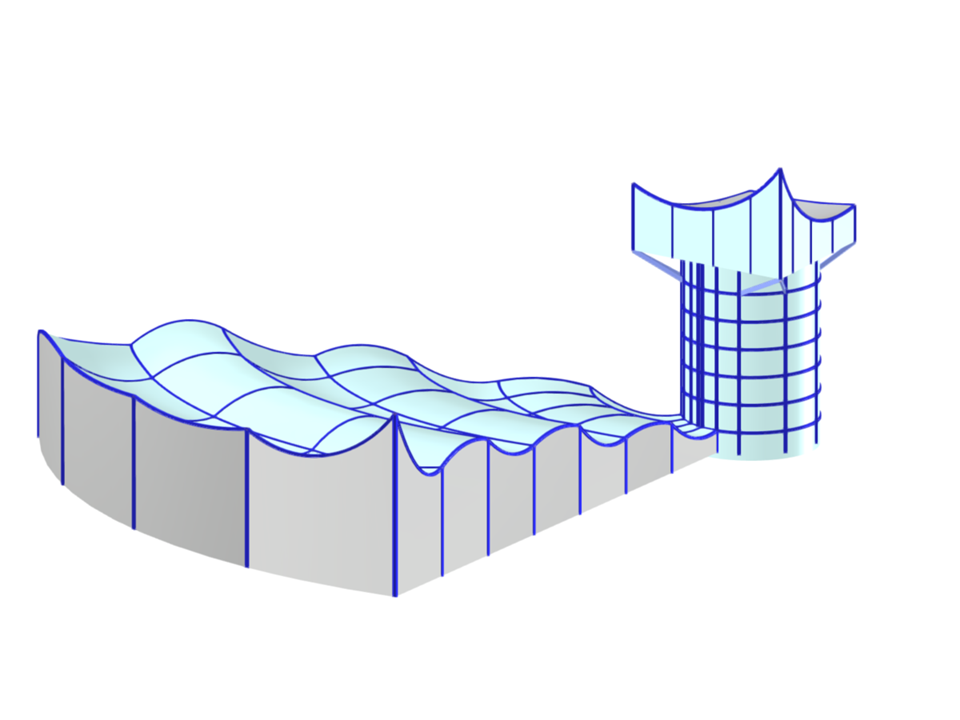

This model has an extremely eccentric architecture, making it suitable as a test object for a wind simulation.
Theater
| Number of Nodes | 237 |
| Number of Lines | 344 |
| Number of Members | 308 |
| Number of Surfaces | 114 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 1403.858 tons |
| Dimensions (Metric) | 61.066 x 28.250 x 70.159 m |
| Dimensions (Imperial) | 200.35 x 92.68 x 230.18 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
