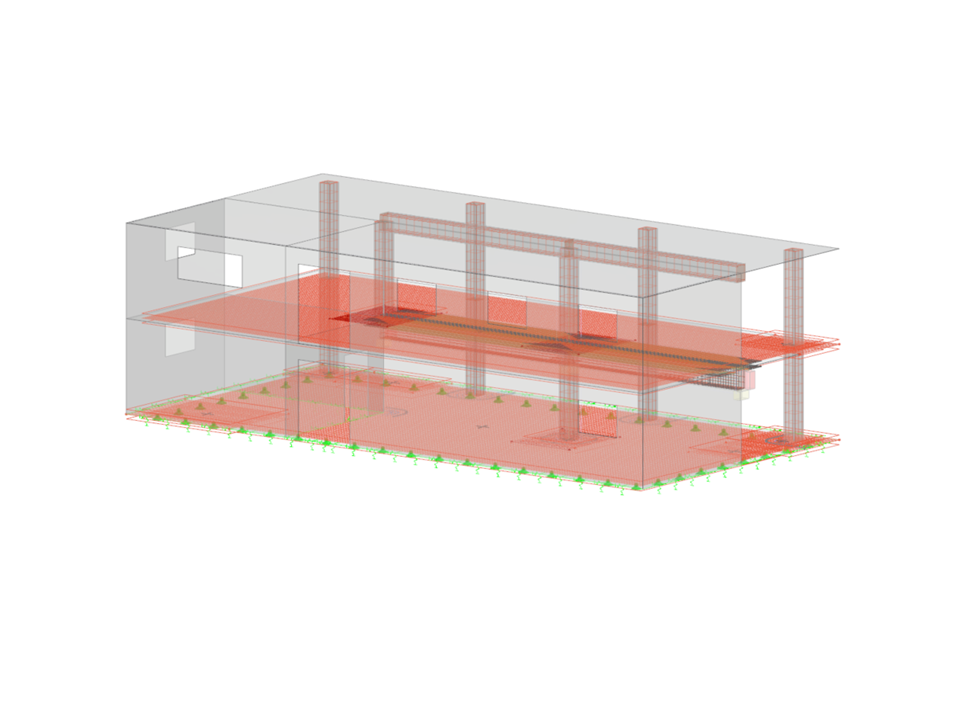

This reinforced concrete house was created using the Concrete Design add-on,
including the design of a T-beam, several columns, and floor slabs.
Various reinforcement meshes were entered, punching shear reinforcement was integrated, and surface results adjustments were used in order to fulfill the SLS and ULS design checks.
Concrete Structure of Vacation House
| Number of Nodes | 83 |
| Number of Lines | 90 |
| Number of Members | 15 |
| Number of Surfaces | 11 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 567.444 tons |
| Dimensions (Metric) | 20.000 x 6.000 x 10.000 m |
| Dimensions (Imperial) | 65.62 x 19.69 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
