Parameterization of geometry of a steel trapezoidal plate with commercial dimensions and concrete slab with variable length and thickness.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.

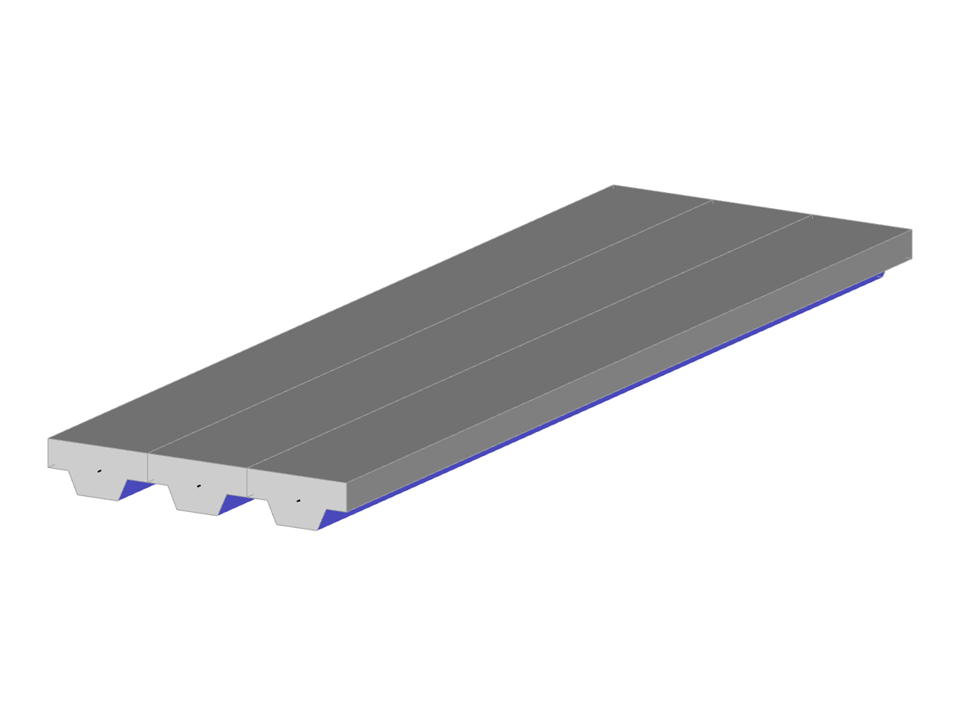

Trapezoidal Plate
| Block parameters editable dynamically | |
| Number of Nodes | 46 |
| Number of Lines | 67 |
| Number of Members | 3 |
| Number of Surfaces | 28 |
| Number of Solids | 3 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Total Weight | 0.995 tons |
| Dimensions (Metric) | 0.914 x 3.000 x 0.143 m |
| Dimensions (Imperial) | 3 x 9.84 x 0.47 feet |
| Program Version | 5.28.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
