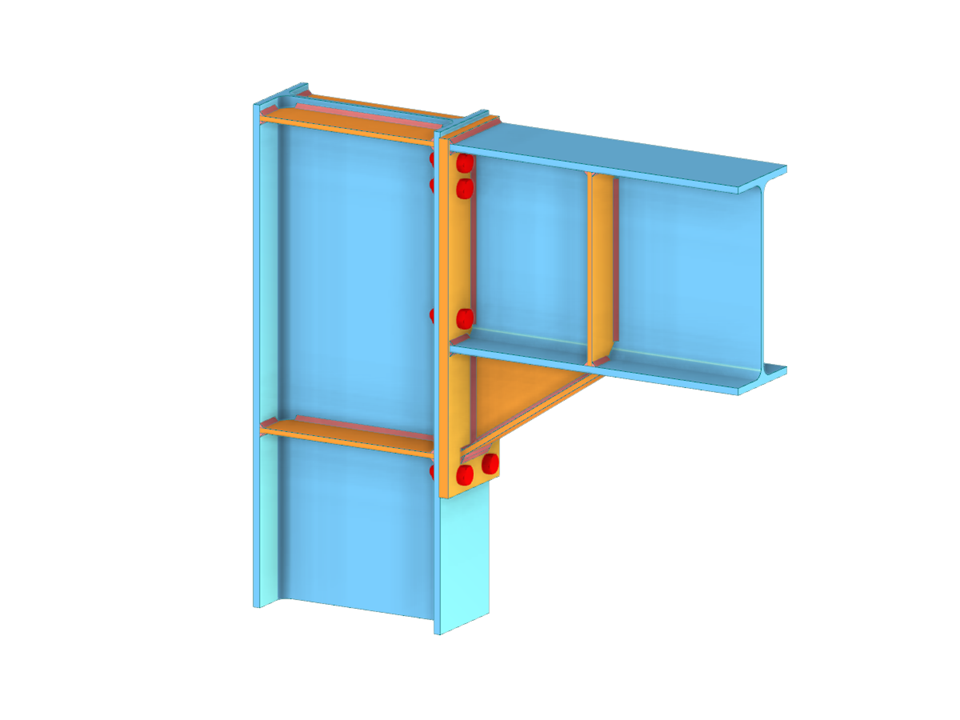

Download the model of rigid connections here and open it with the structural FEA software RFEM 6.
This model was used in the webinar 'Analysis of Steel Joints Using FE Model in RFEM 6' on Aug 10, 2022 (Arabic).
Fixed Steel Frame with Rigid Connections
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.326 tons |
| Dimensions (Metric) | 10.000 x 5.000 x 0.000 m |
| Dimensions (Imperial) | 32.81 x 16.4 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
