Download the model of a steel hall here, and open it with the FEA software RFEM.
This model is used in the free webinar "Modeling and Design of Steel Structures in RFEM 6 and RSTAB 9" from October 20, 2021 (in English; on October 19, 2021 in German).
Model Used in

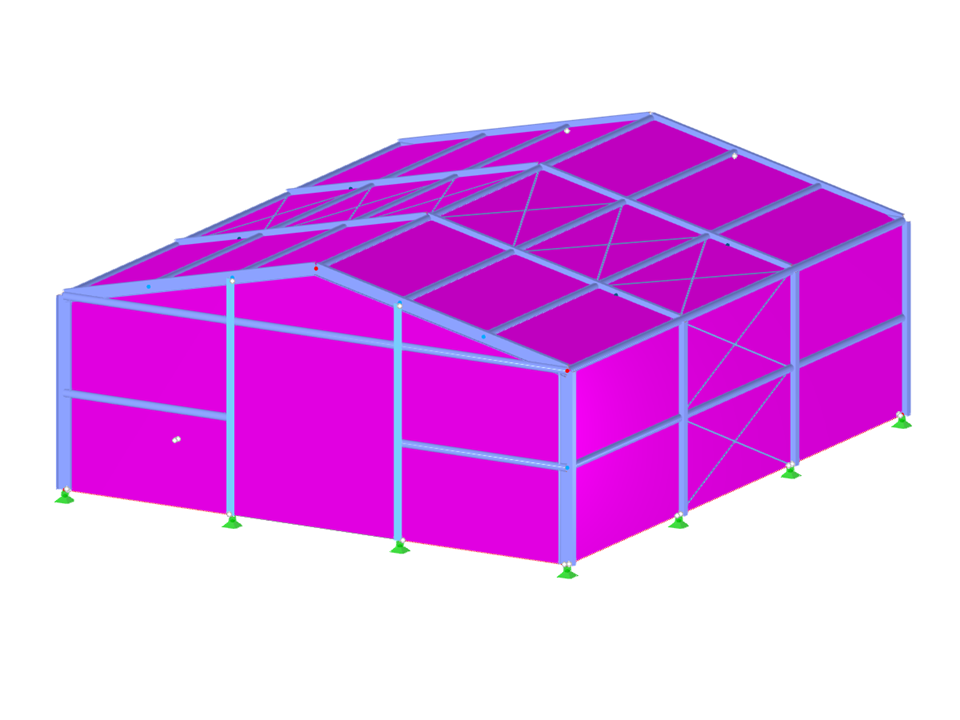

Steel Hall
| Number of Nodes | 60 |
| Number of Lines | 89 |
| Number of Members | 87 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 23 |
| Number of Result Combinations | 0 |
| Total Weight | 10.916 tons |
| Dimensions (Metric) | 13.000 x 6.001 x 15.000 m |
| Dimensions (Imperial) | 42.65 x 19.69 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
Length: 00:00:35 min
Length: 01:10:42 min
Length: 00:00:55 min
Length: 00:02:14 min
Length: 00:01:02 min
Length: 00:02:16 min
Length: 00:01:12 min
Length: 00:00:58 min
Length: 01:00:52 min
To be able to evaluate the influence of local stability phenomena of slender structural components, RFEM 6 and RSTAB 9 provide you with the option of performing a linear critical load analysis on the cross-section level. The following article explains the basics of the calculation and the result interpretation.
For the stability verification of members using the equivalent member method, it is necessary to define effective or lateral-torsional buckling lengths in order to determine a critical load for stability failure. In this article an RFEM 6-specific function is presented, by which you can assign an eccentricity to the nodal supports and thus influence the determination of the critical bending moment considered in the stability analysis.
The CSA S16:19 Stability Effects in Elastic Analysis method in Annex O.2 is an alternative option to the Simplified Stability Analysis Method in Clause 8.4.3. This article will describe the requirements of Annex O.2 and application in RFEM 6.
Consideration of p-δ Second-Order Effects in RFEM 6 and RSTAB 9
- Numerous component types, such as base and end plates, web angles, fin plates, gusset plates, stiffeners, tapers, or ribs for easy input of typical connection situations
- Universally applicable basic components (such as plates, welds, bolts, auxiliary planes) for modeling complex connection situations
- Graphical display of the connection geometry with dynamic updating during the input
- Wide range of cross-section shapes: I-sections, U-sections, angles, T-sections, hollow sections, built-up cross-sections and thin-walled sections
- Library in the Dlubal Center with a large number of program-side template connections, including user-defined templates
- Automatic adaptation of the connection geometry based on the relative arrangement of the components to each other – even in case of subsequent editing of the structural components
In the ultimate configuration of the steel joint design, you have the option to modify the limit plastic strain for welds.
The "Base Plate" component allows you to design base plate connections with cast-in anchors. In this case, plates, welds, anchorages, and steel-concrete interaction are analyzed.
In the "Edit Section" dialog box, you can display the buckling shapes of the Finite Strip Method (FSM) as a 3D graphic.
In the Steel Design add-on, I have set the boundary conditions in such a way that the I-beam flange is restrained against the horizontal displacement. I then calculated the critical load factors using the Structure Stability add-on, but with no effect on the critical load factor value. What is the reason for this?
Which programs and add-ons are suitable for the structural analysis and design of steel structures?
Can I design members with Class 4 sections according to CSA S16 in the Steel Design add-on?
How do I create an imperfection based on a mode shape in RFEM 6?
How do I perform stability analysis to determine the critical load factor in RFEM 6?
What is the component-based finite element method (CBFEM)?
