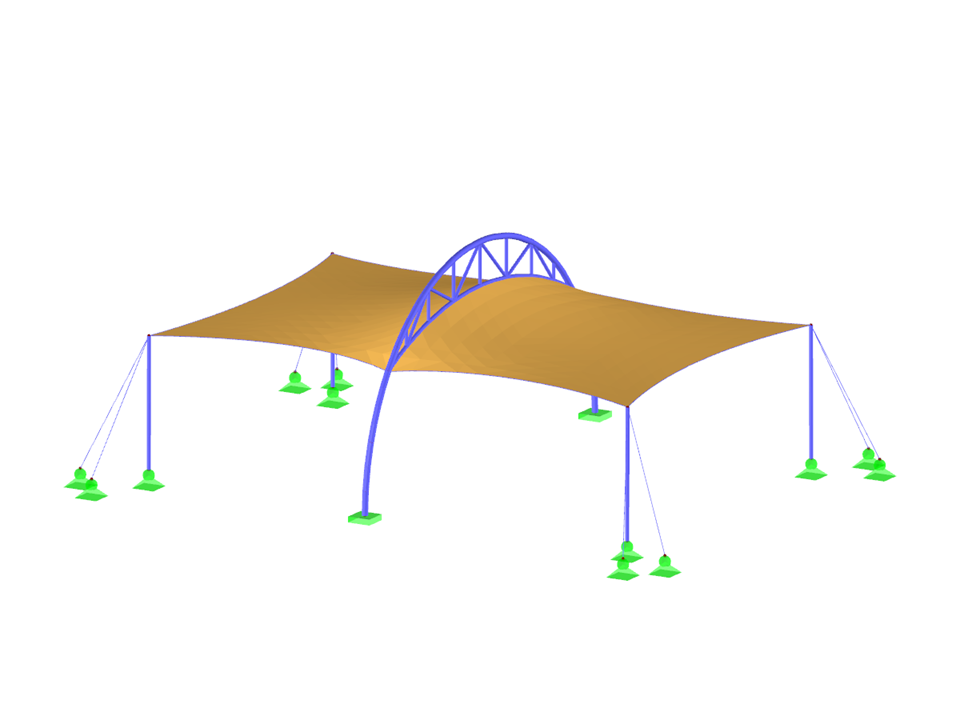

Tensile membrane structure of a shade canopy with the shape calculated in the structural analysis software RFEM.
Membrane Shade Canopy
| Number of Nodes | 52 |
| Number of Lines | 49 |
| Number of Members | 49 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.751 tons |
| Dimensions (Metric) | 15.467 x 11.467 x 5.510 m |
| Dimensions (Imperial) | 50.74 x 37.62 x 18.08 feet |
| Program Version | 5.26.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
