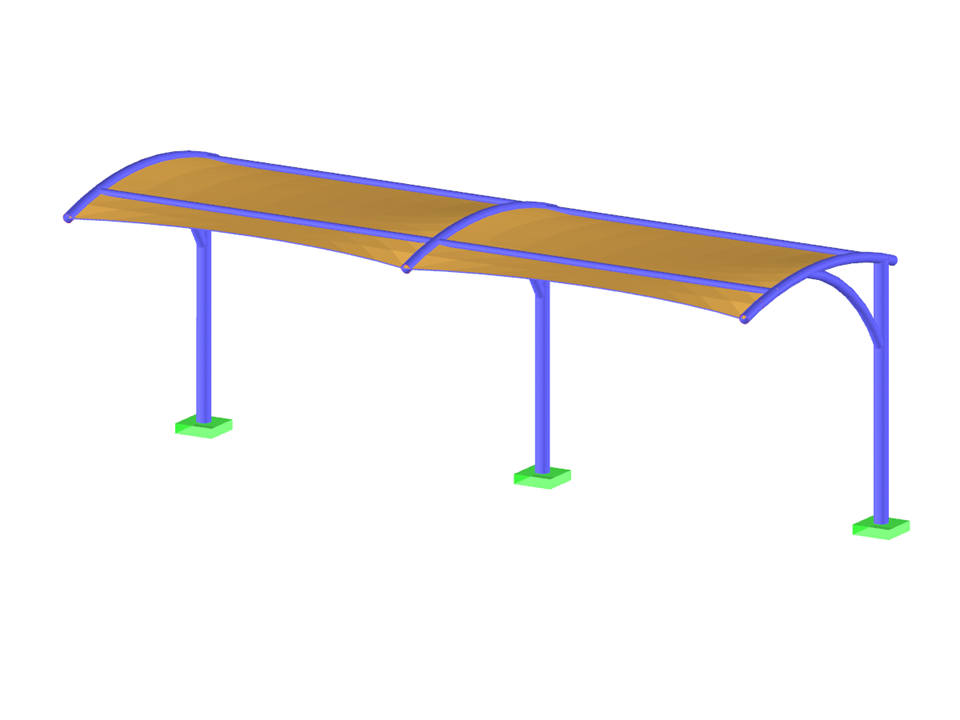

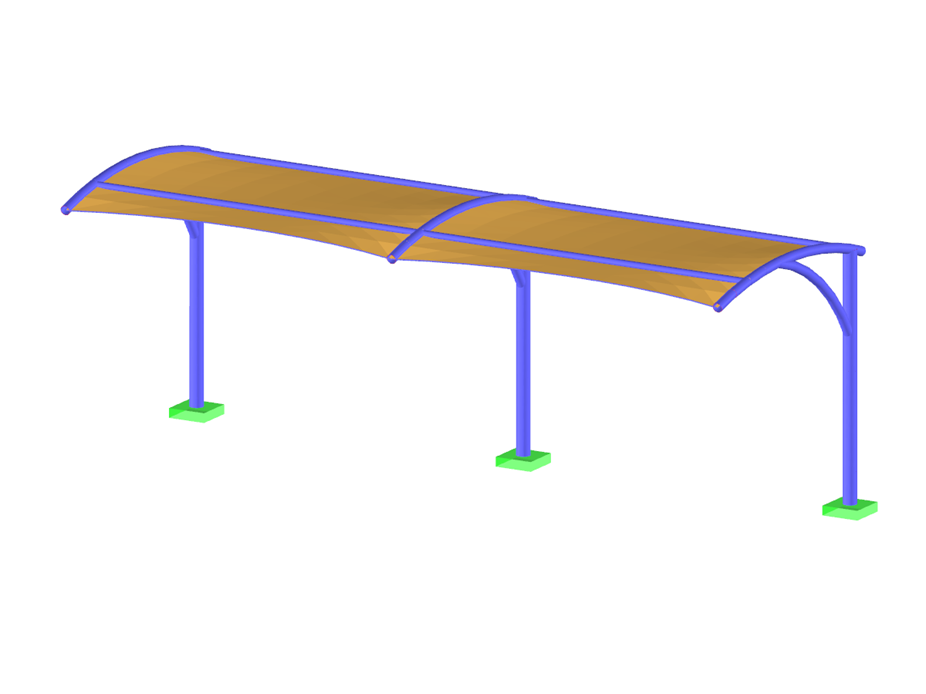

Tensile membrane structure of a bus stop with the shape calculated in the structural analysis software RFEM.
Membrane Roof Bus Stop
| Number of Nodes | 30 |
| Number of Lines | 26 |
| Number of Members | 26 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.828 tons |
| Dimensions (Metric) | 11.258 x 5.058 x 4.789 m |
| Dimensions (Imperial) | 36.94 x 16.59 x 15.71 feet |
| Program Version | 5.26.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
