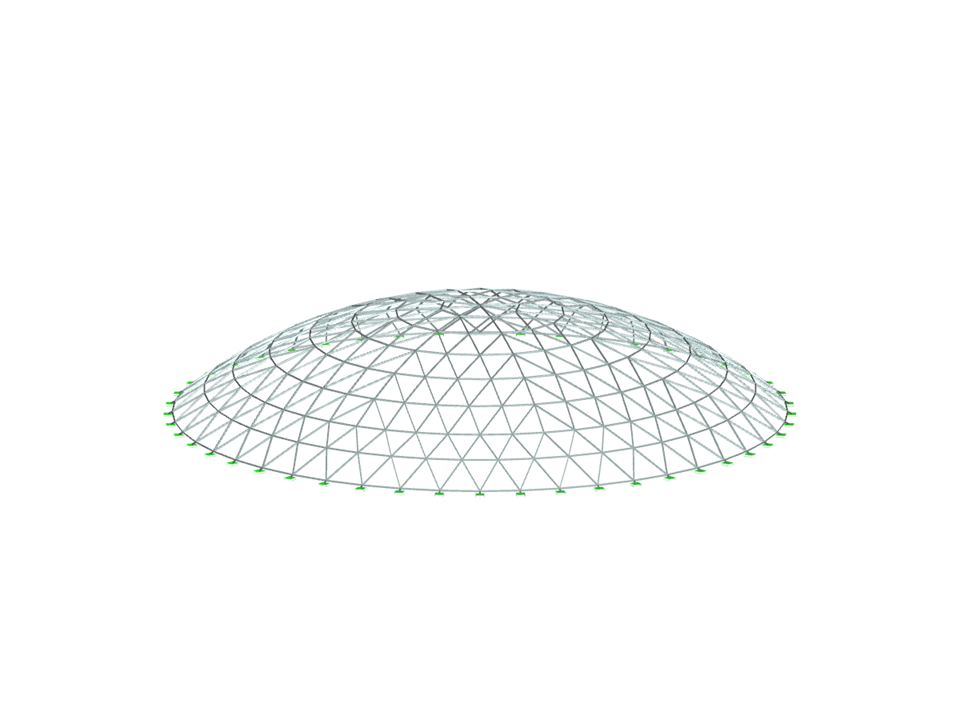

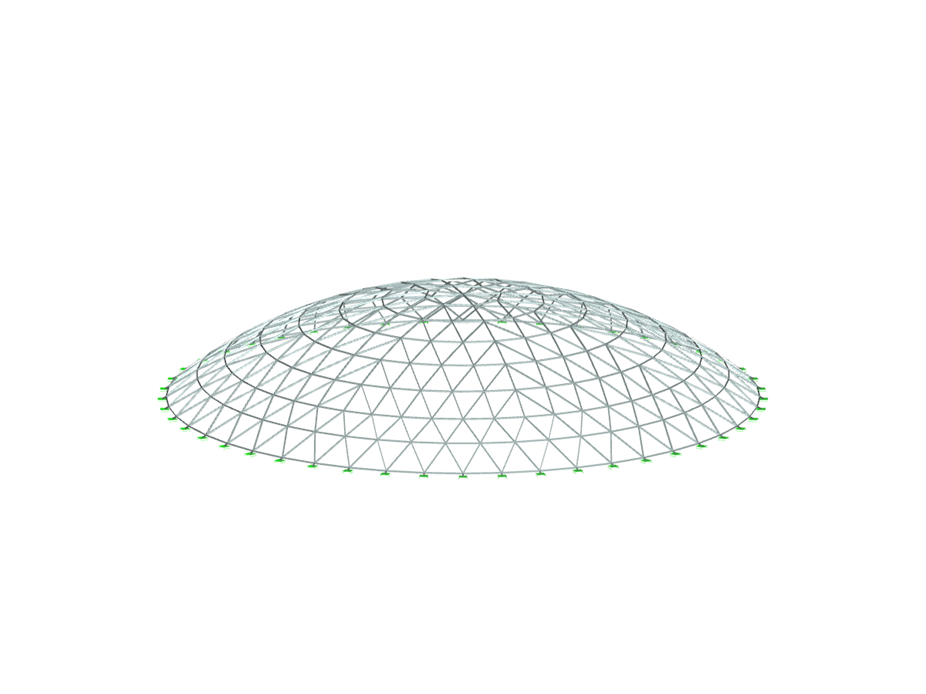

This model presents a simply supported dome made of aluminum cross-sections designed according to the American and European standards.
Aluminum Dome for Oil and Gas Tank Cover
| Number of Nodes | 322 |
| Number of Lines | 792 |
| Number of Members | 792 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 5 |
| Total Weight | 12.213 tons |
| Dimensions (Metric) | 81.222 x 42.623 x 57.436 m |
| Dimensions (Imperial) | 266.48 x 139.84 x 188.44 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
