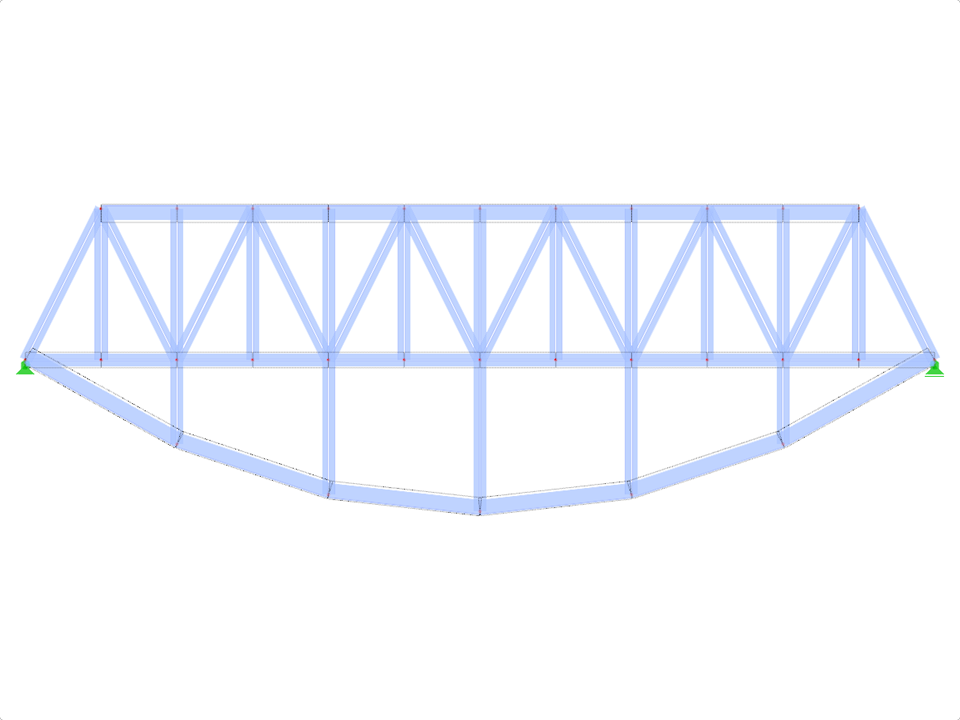

Parabolic - Flat Bottom ChordInput via total length (L), first and last bays (L1), middle bays (L2), and heights (H1 and H2)
FTZ180p-plg | Parabolic – Flat Bottom Chord
| Block parameters editable dynamically | |
| Number of Nodes | 29 |
| Number of Lines | 56 |
| Number of Members | 56 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.156 tons |
| Dimensions (Metric) | 12,000 x 4,000 x 0,000 m |
| Dimensions (Imperial) | 39.37 x 13.12 x 0 feet |
