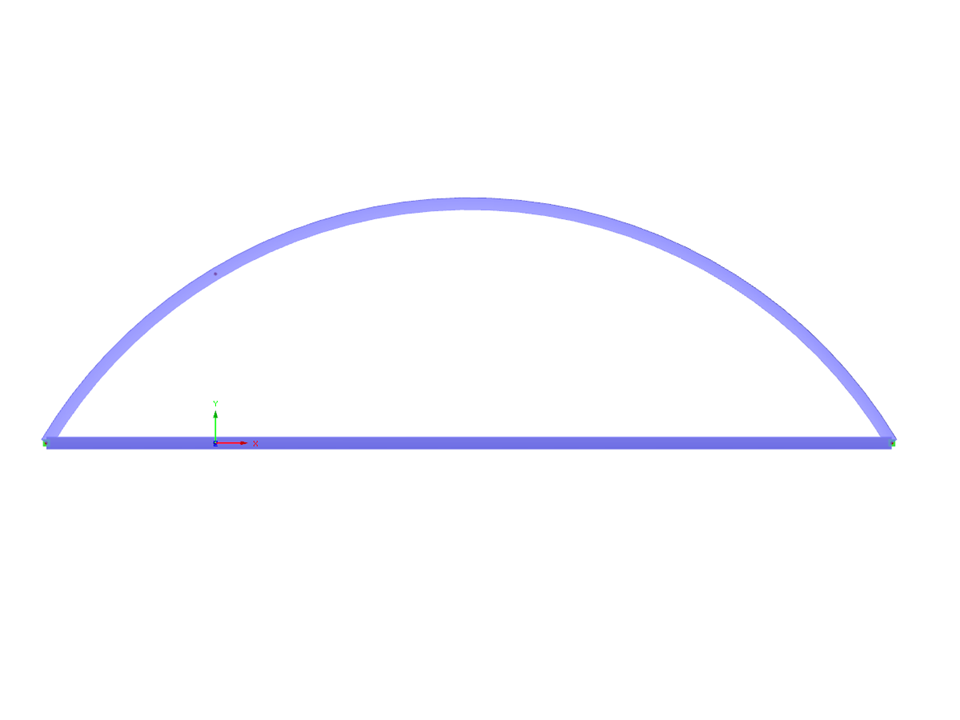

This model was used for example purposes in a FAQ on stability check.
Model Used in
Curved and Straight Members
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 1.364 tons |
| Dimensions (Metric) | 15.240 x 0.000 x 4.314 m |
| Dimensions (Imperial) | 50 x 0 x 14.15 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
