The model visualizes a reinforced concrete slab with a central hole and perimeter beams along the edges, illustrating typical structural principles of concrete floor structures. It serves as a practical example for analyzing the interactions between concrete slabs and slender beam elements. Relevant aspects, such as material behavior and structural response, are demonstrated. The presentation supports engineers in the evaluation of structural requirements for reinforced concrete structures.

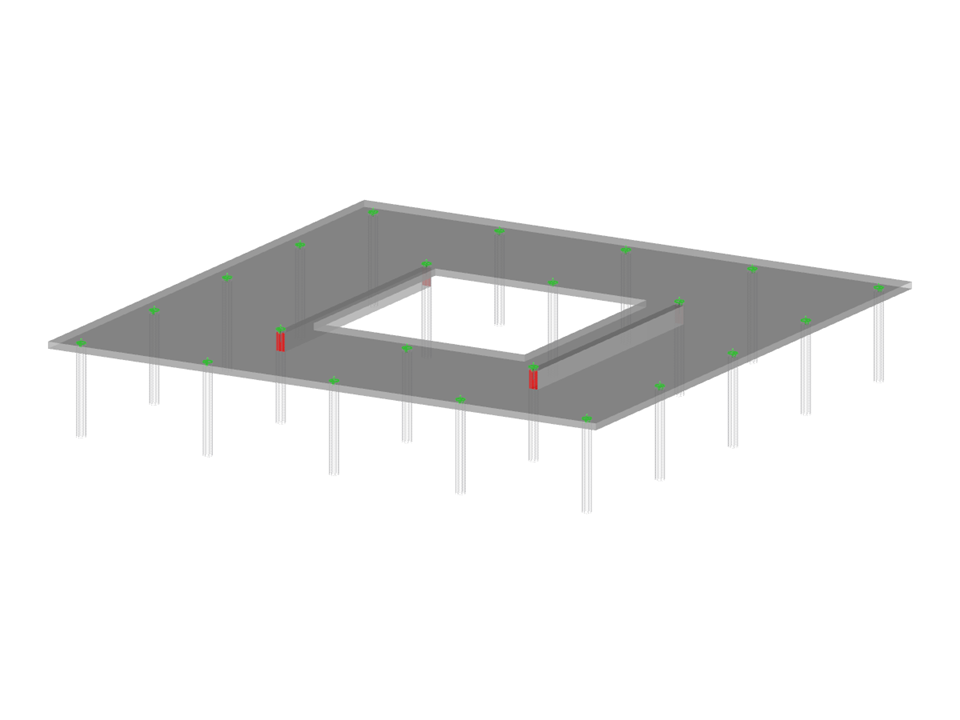

Reinforced Concrete Slab with Hole and Beam
| Number of Nodes | 30 |
| Number of Lines | 10 |
| Number of Members | 2 |
| Number of Surfaces | 1 |
| Number of Load Cases | 13 |
| Number of Result Combinations | 2 |
| Dimensions (Metric) | 20.117 x 20.117 x 0.669 m |
| Dimensions (Imperial) | 66 x 66 x 2.19 feet |
| Program Version | 5.25.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
