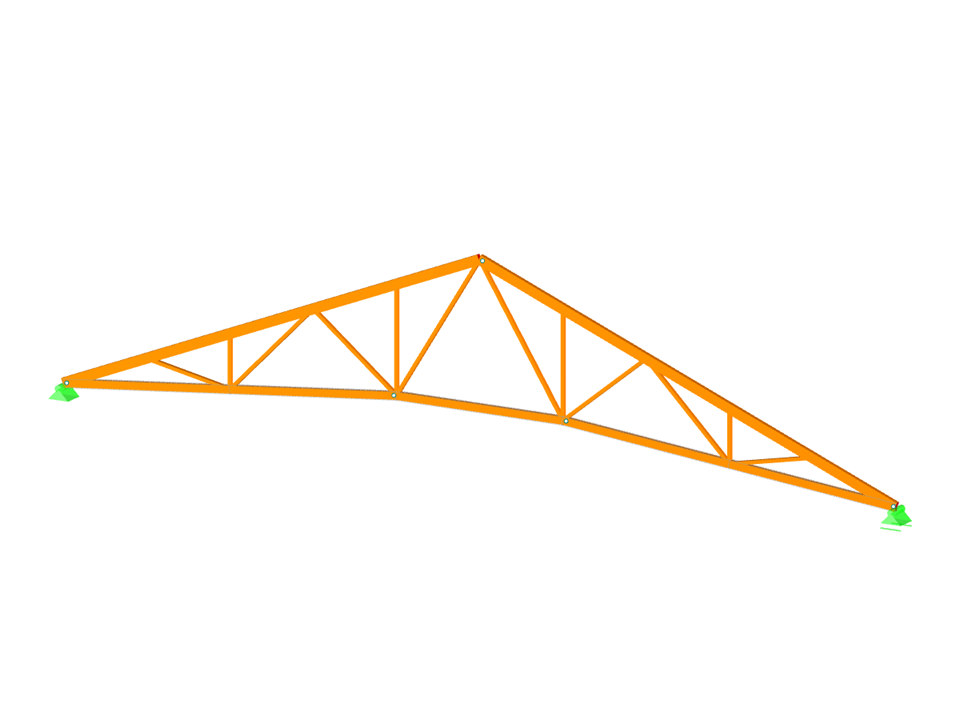

This model was used to show how to display the members in color, depending on the applied cross-section for a quick overview of the cross-sections used.
Truss
| Number of Nodes | 15 |
| Number of Lines | 27 |
| Number of Members | 27 |
| Number of Load Cases | 8 |
| Number of Result Combinations | 14 |
| Total Weight | 0.757 tons |
| Dimensions (Metric) | 25.600 x 0.600 x 5.300 m |
| Dimensions (Imperial) | 83.99 x 1.97 x 17.39 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
