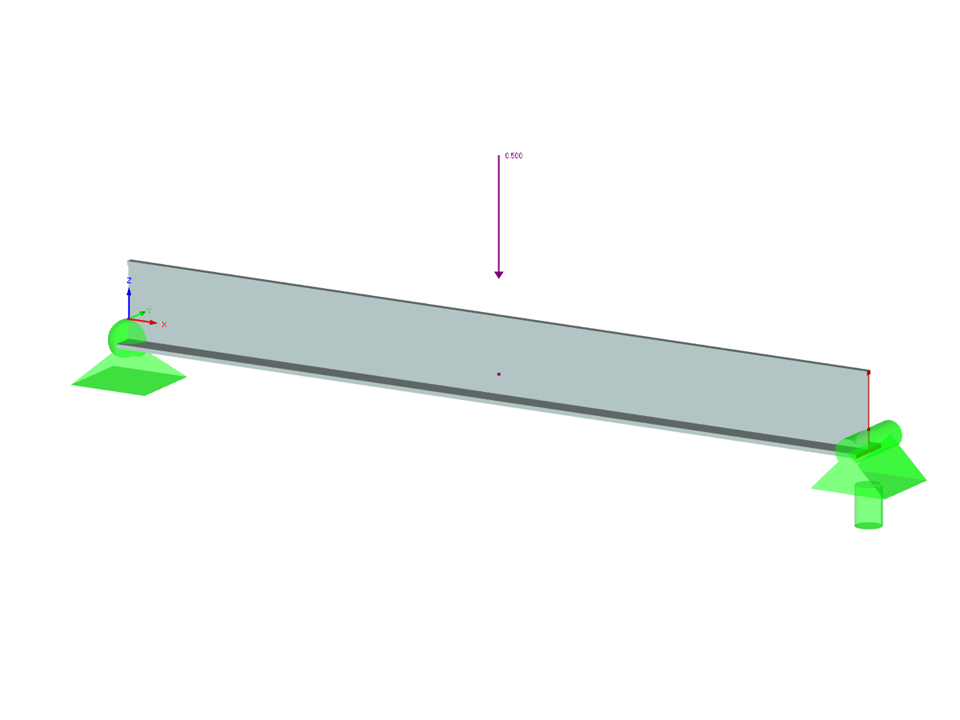

Verify that a beam of different cross-sections made of Alloy 6061-T6 is adequate for the required load, in accord with the 2020 Aluminium Design Manual.
Verification Example 001012 | 9
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.045 tons |
| Dimensions (Metric) | 3.048 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 10 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
