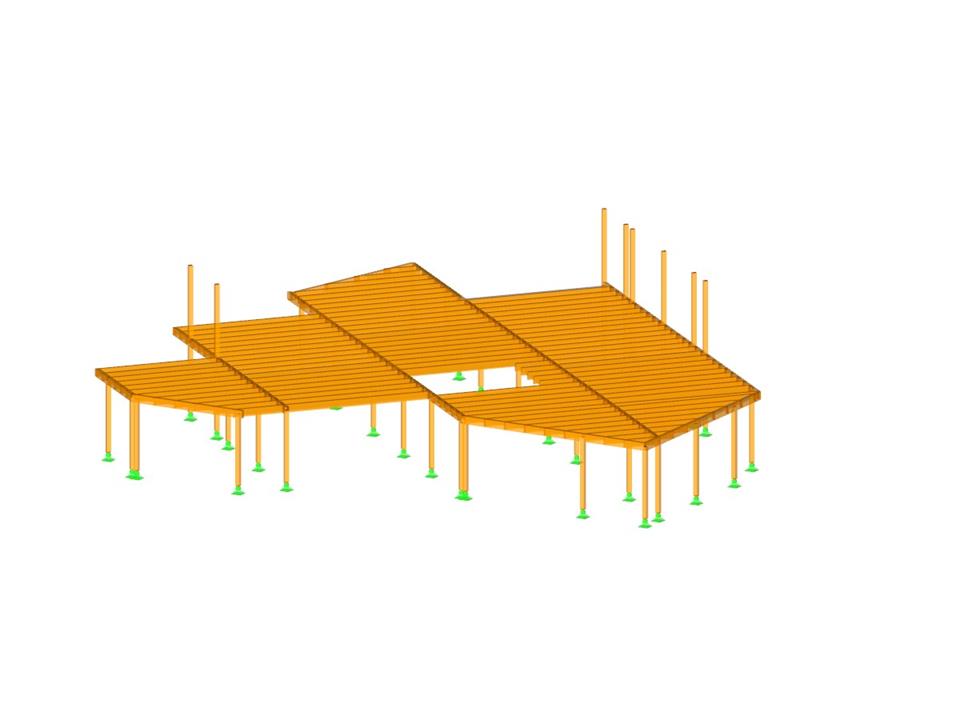

A kindergarten, designed according to Building Information Modeling (BIM), is currently under construction in the Tyrolean municipality of Schwoich.
The digital 3D model accompanies the construction project from design to completion.
AGA-Bau-Planungs GmbH
www.agabau.at
Top: Physical Revit model, middle: Analytical Revit model, bottom: RFEM model (© AGA-Bau)
The digital 3D model accompanies the construction project from design to completion.
AGA-Bau-Planungs GmbH
www.agabau.at
Top: Physical Revit model, middle: Analytical Revit model, bottom: RFEM model (© AGA-Bau)
Timber Frame Structure
No Download Possible
Customer Project / View Only
| Number of Nodes | 311 |
| Number of Lines | 414 |
| Number of Members | 387 |
| Number of Surfaces | 3 |
| Number of Load Cases | 29 |
| Number of Load Combinations | 3 |
| Total Weight | 82.836 tons |
| Dimensions (Metric) | 28.673 x 27.955 x 7.055 m |
| Dimensions (Imperial) | 94.07 x 91.72 x 23.15 feet |
| Program Version | 5.16.01 |
