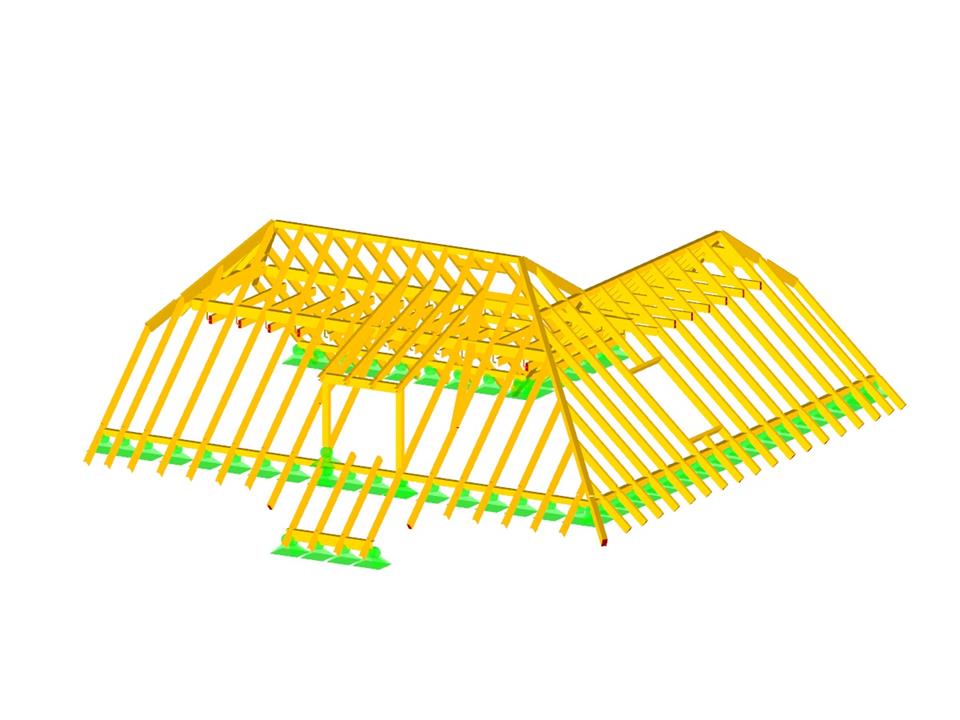

Roof Truss
Number of Nodes | 569 |
Number of Members | 816 |
Number of Load Cases | 7 |
Number of Result Combinations | 6 |
Total Weight | 11.740 tons |
Dimensions (Metric) | 13.321 x 14.300 x 5.438 m |
Dimensions (Imperial) | 43.7 x 46.92 x 17.84 feet |
Program Version | 7.02.07 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
