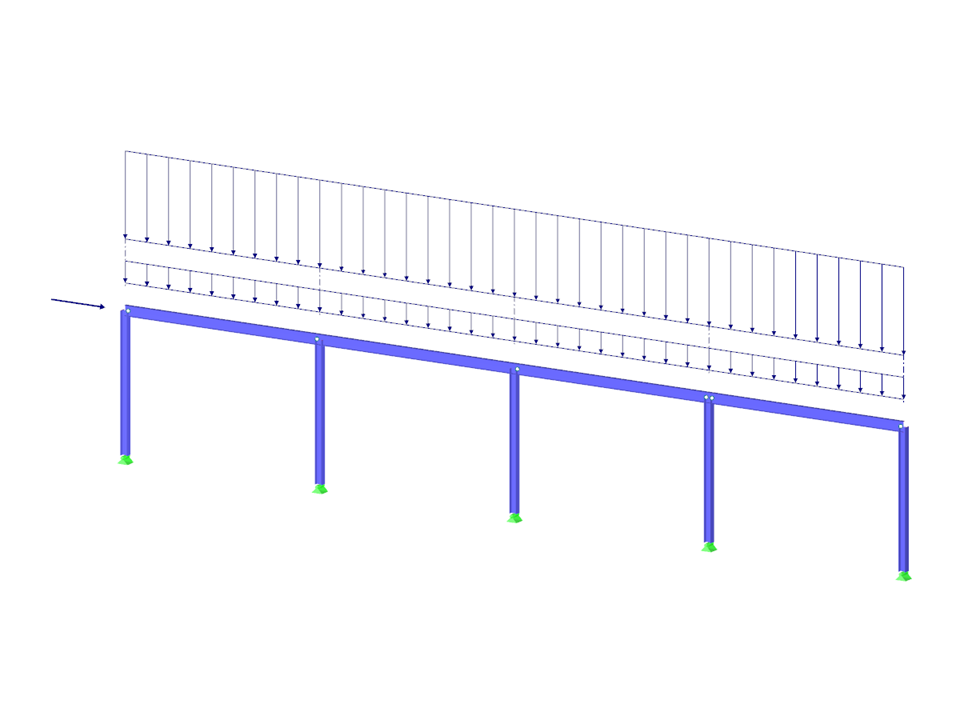

Determine the required strengths and effective length factors for the ASTM A992 material columns in the moment frame shown in Figure 1 for the maximum gravity load combination, using LRFD and ASD.
Model Used in
Verification Example 001001 | 2
| Number of Nodes | 10 |
| Number of Lines | 9 |
| Number of Members | 9 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 4 |
| Total Weight | 5.134 tons |
| Dimensions (Metric) | 37.076 x 0.500 x 6.346 m |
| Dimensions (Imperial) | 121.64 x 1.64 x 20.82 feet |
| Program Version | 5.14.03 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
