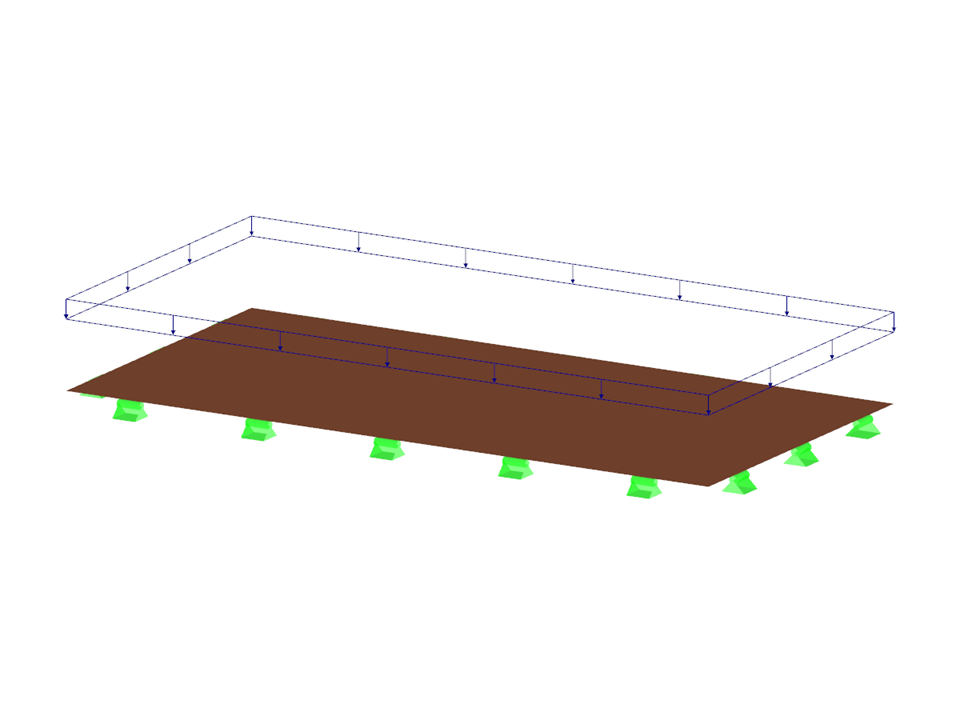

A thin rectangular orthotropic plate is simply supported and loaded by the uniformly distributed pressure. The directions of axis x and y coincide with the principal directions. While neglecting self-weight, determine the maximum deflection of the plate.
Model Used in
Verification Example 000091 | 2
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Surfaces | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.012 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
| Program Version | 5.15.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
