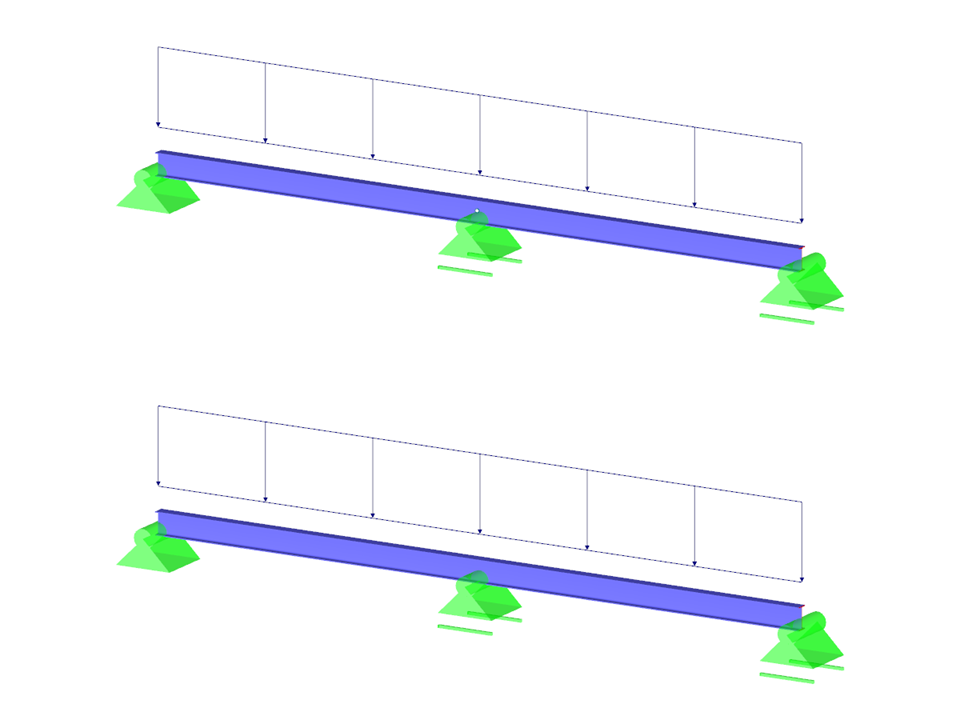

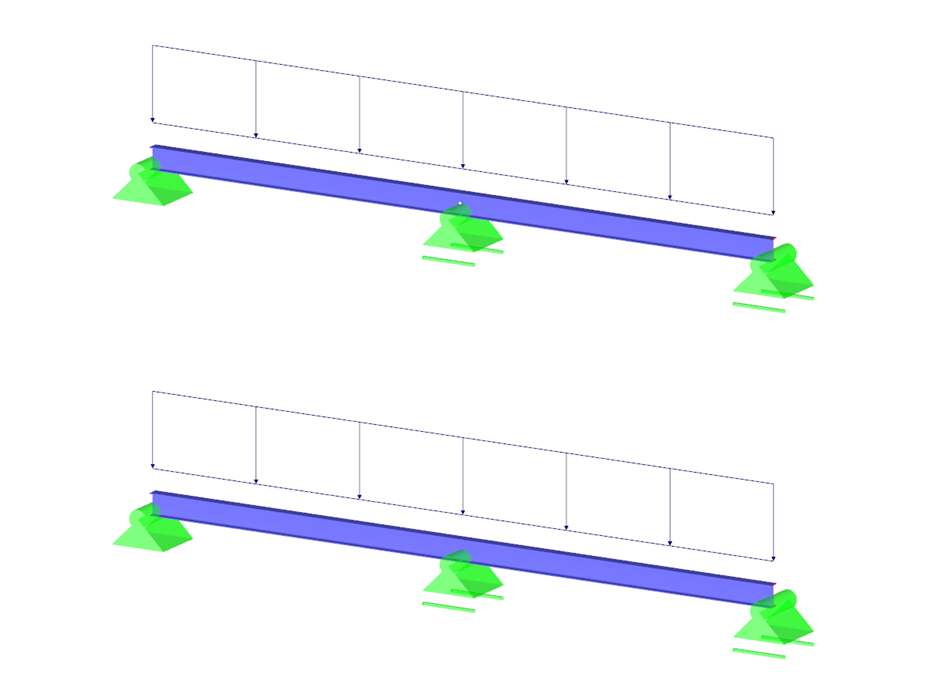

Download the model a hinged beam here, and open it with the finite element analysis software RFEM 5.
This model is used in the video "Modeling with RFEM 5 | 004 Hinged Beam".
Model Used in
Modeling with RFEM 5 | 004 Hinged Beam
| Number of Nodes | 6 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Load Cases | 1 |
| Total Weight | 0.268 tons |
| Dimensions (Metric) | 6.288 x 0.288 x 3.288 m |
| Dimensions (Imperial) | 20.63 x 0.94 x 10.79 feet |
| Program Version | 5.21.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
