Concrete in compression area

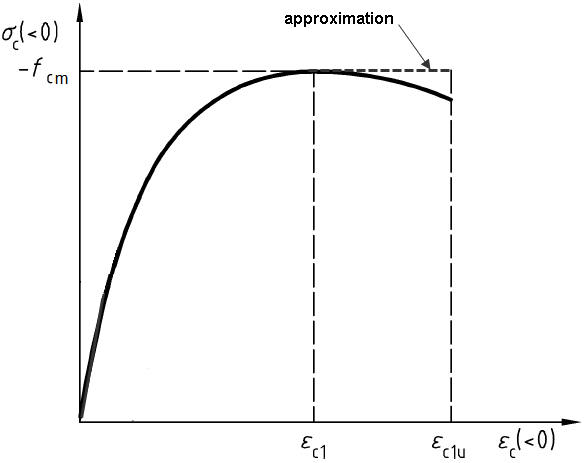

For the serviceability limit state design, the program calculates using the mean strengths of the materials. Dans les zones comprimées, vous pouvez choisir entre un diagramme parabole ou parabole-rectangle de la relation contrainte-déformation.

The settings are specified in the Material Properties tab of the Settings for Nonlinear Calculation dialog box (see Figure 3.12). This dialog box can be accessed in the Serviceability Limit State tab of window 1.1 General Data by clicking the button shown on the left (see Figure 2.130).
