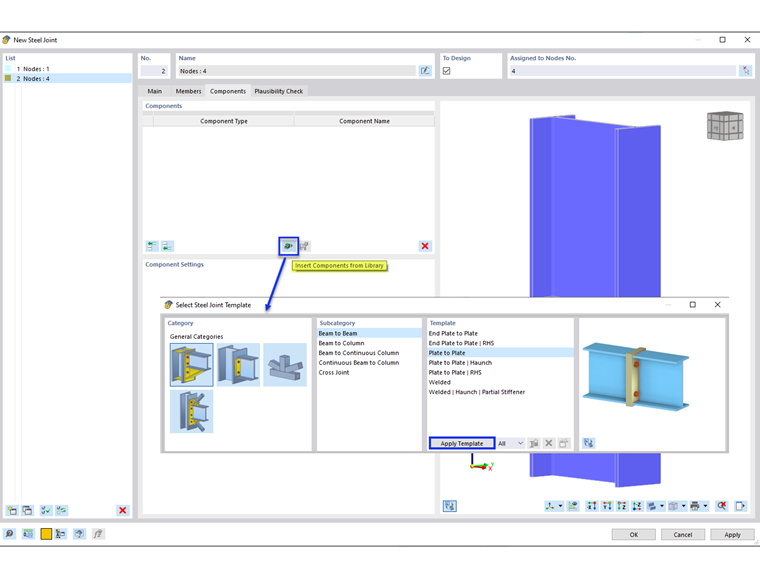

使用端板的对接对接连接可以使用组件库中的“板到板”（图 01）轻松创建。
1
钢结构节点模板

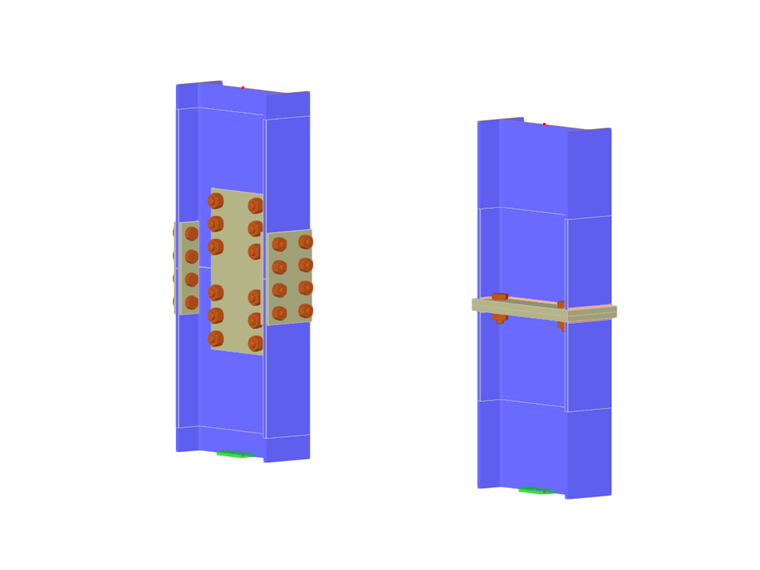

For a splice joint without end plates, the configuration can be created manually by adding individual components (Image 02).
2
添加单个组件
The configuration includes the following components. Each component can be easily deleted or copied by right-clicking on the component.
- Plate (2 outer flange plates, 4 inner flange plates, 2 web plates)
- Fasteners (4 sets to connect, 4 inner flange plates, 1 set to connect web plate)
- Auxiliary Plane (2 planes)
- Member Cut (2 cuts with the type of cut “By auxiliary plane”)
It is required that a small gap is created using “Member Cut” and “Auxiliary Plane”. The gap is divided between the two members (that is, 1/16” gap is applied as 1/32” displacement to each member).

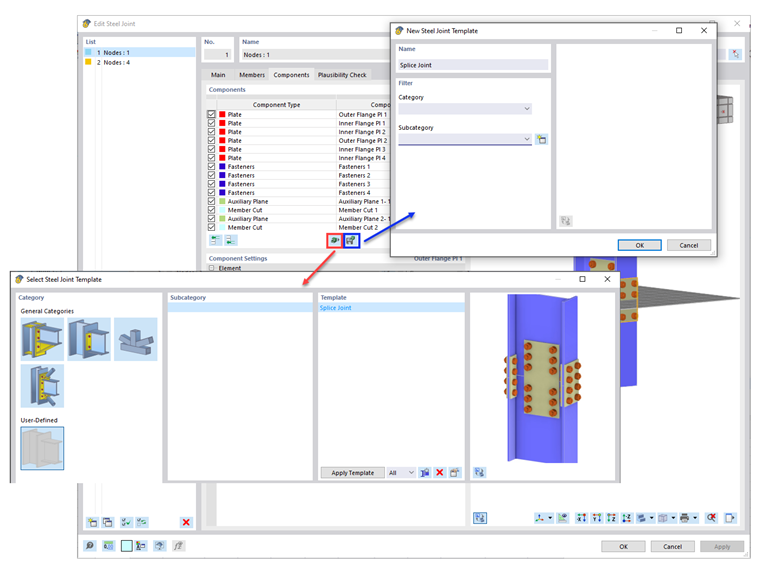

Alternatively, a sample model “AISC Splice Connection” can be downloaded and saved as a user-defined template (Image 03).
