荷载增量和非线性材料

是否可以设置荷载增量,保存每一步的结果,并查看材料在哪个荷载增量上屈服?


回复:

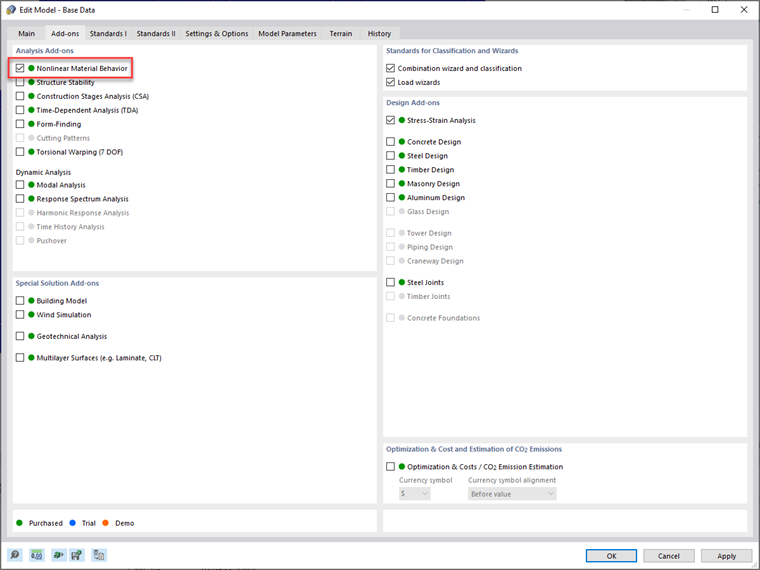

要激活 RFEM 6 或 RSTAB 9 中的材料非线性行为,必须先激活 材料非线性 模块。

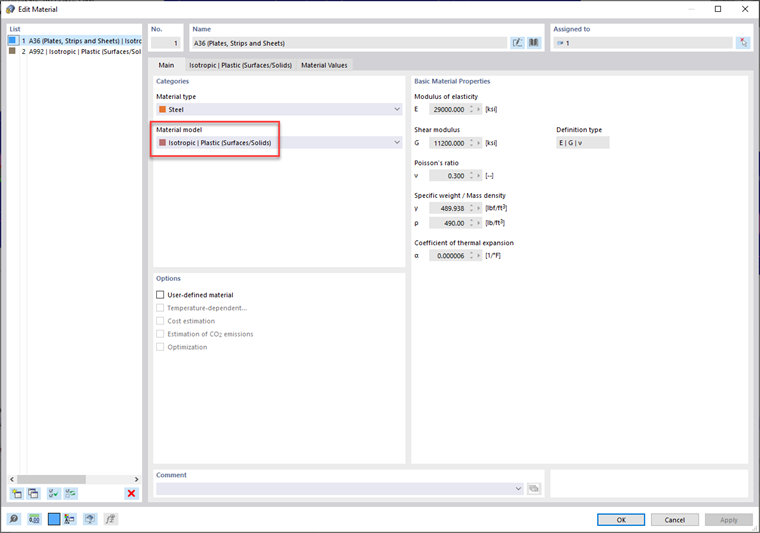

The material model should then be modified from the default setting "Linear Elastic" to the relevant "Plastic" setting in the Material dialog box, depending on whether the element is a 1D member, 2D surface, or 3D solid.

Lastly, the Static Analysis Settings should further be modified to set the number of load increments and to activate the "Save results of all load increments" checkbox.

After the calculation, all results can be viewed in the Navigator – Results panel according to the selected load increment.
