回复:
使用 REEM 导入或导出到 Revit 时不考虑肋单元。 Ribs are converted to "beam" elements in either scenario.

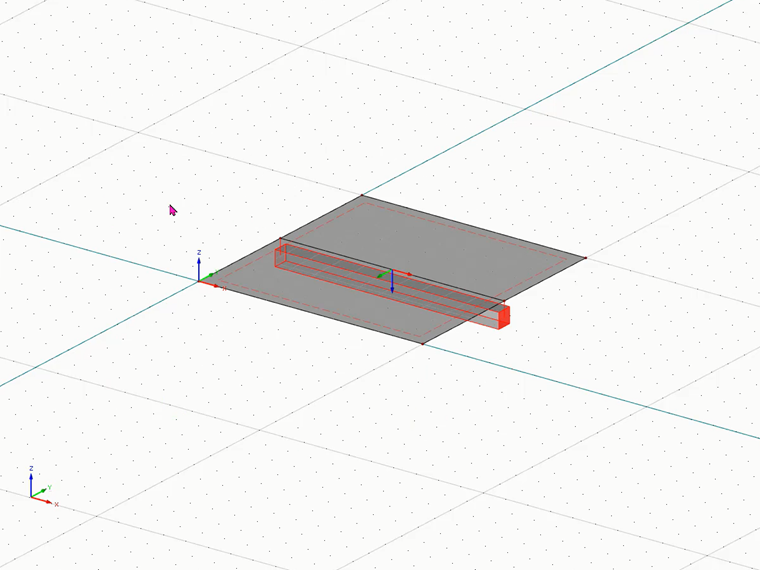

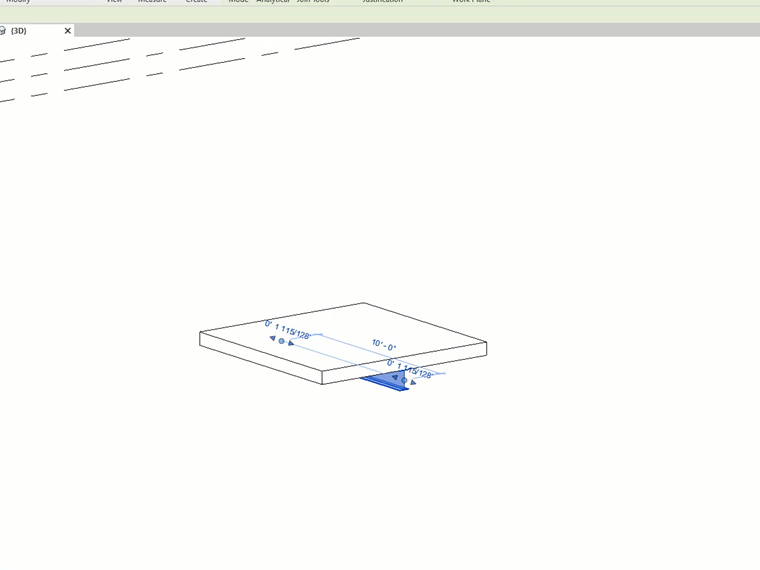

The comparison in Images 1 and 2 between the rib element in RFEM vs. Revit can be seen.
The eccentricity is applied, but it is not listed as a rib element and does not include integrated widths.
