Respuesta:

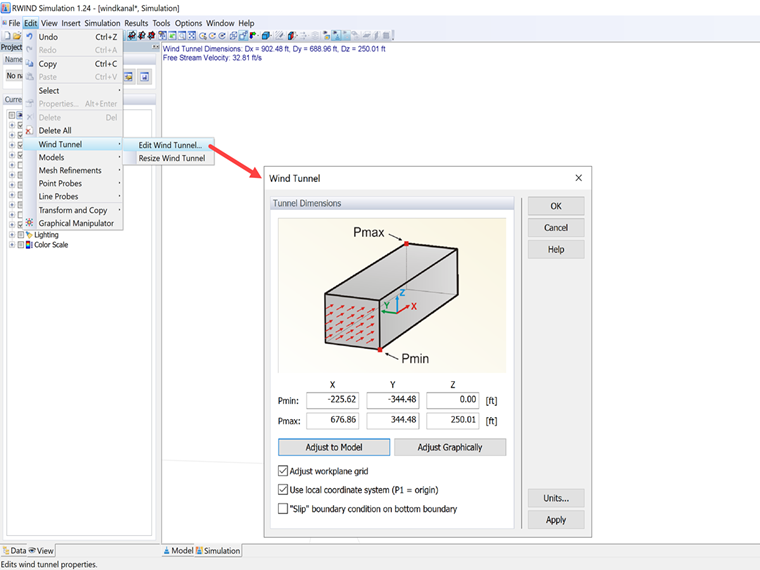

Las dimensiones del túnel de viento predeterminadas sugeridas del tamaño de la toma se establecen al doble de las dimensiones de anchura y altura del modelo. Its length is set as three times the model length with a shorter distance at the intake side.
The procedure used to calculate the default wind tunnel dimensions involves a complex testing process that has been optimized. The default dimensions are determined as to provide sufficiently large free space around the structure in the model, and also set as small as possible to obtain short calculation times.
Although the automatic default dimensions should be sufficient, manual changes can be made by the user.
