Parameterization of the connection of a steel I-section beam to a concrete block, the dimensions of the connection plate and the concrete block can be adjusted, as well as the dimensions (diameter and length) and the location of anchor bolts.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.

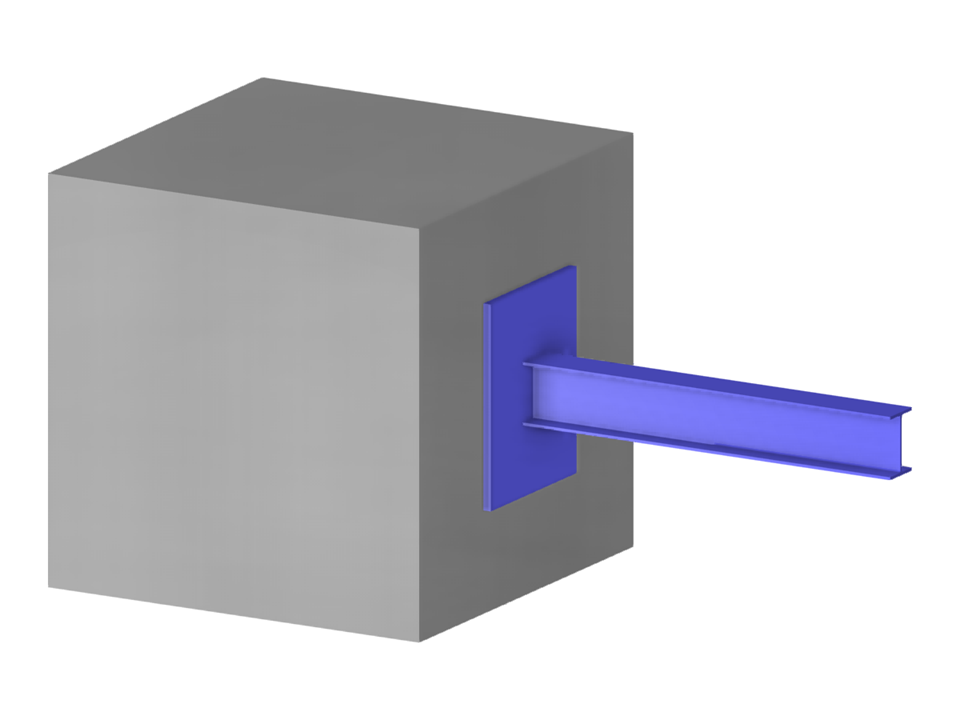

I-Section to Concrete Block Connection
Block parameters editable dynamically | |
Number of Nodes | 55 |
Number of Lines | 60 |
Number of Members | 9 |
Number of Surfaces | 26 |
Number of Solids | 2 |
Number of Load Cases | 1 |
Number of Load Combinations | 2 |
Number of Result Combinations | 0 |
Total Weight | 2.365 tons |
Dimensions | 6.59 x 3.28 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
