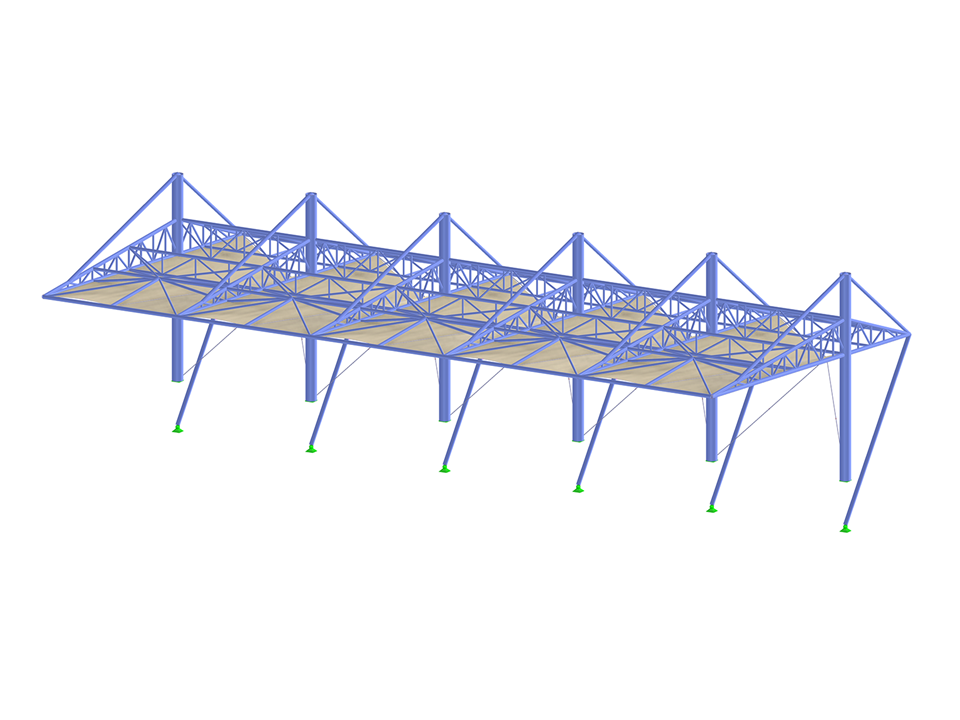

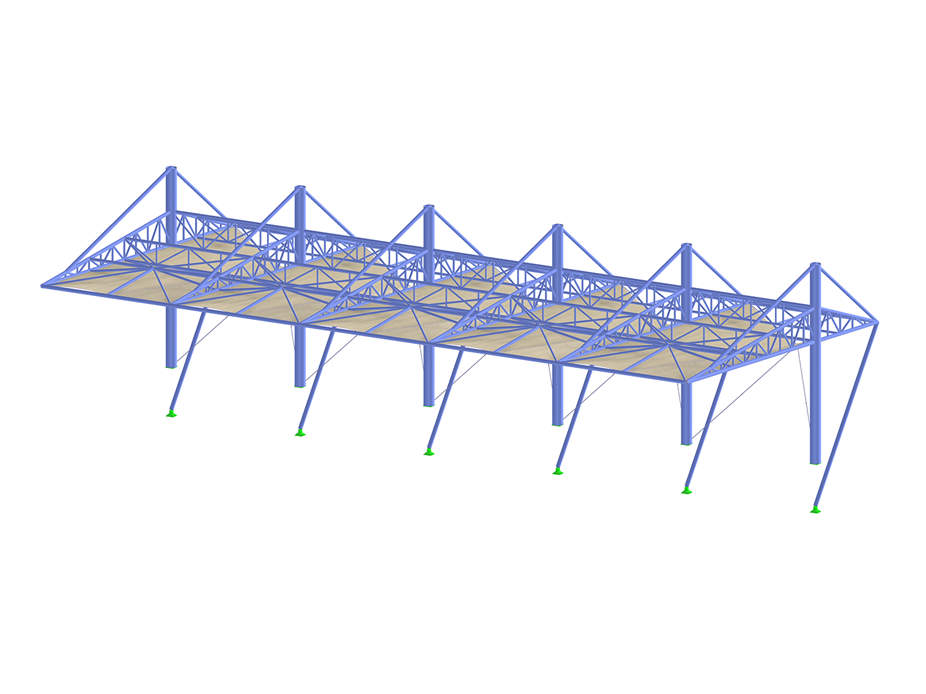

RFEM Model of Steel Membrane Roofing of Grandstand at Xuzhou University of Technology, China | © Jiangsu Jingong Space Structure Co., Ltd.
Steel Membrane Roofing of Grandstand at Xuzhou University of Technology, China
| Number of Nodes | 326 |
| Number of Lines | 476 |
| Number of Members | 476 |
| Number of Surfaces | 10 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 45.769 tons |
| Dimensions (Metric) | 42,000 x 14,160 x 21,588 m |
| Dimensions (Imperial) | 137.8 x 46.46 x 70.83 feet |
Product Feature
In the ultimate configuration of the steel joint design, you have the option to modify the limit plastic strain for welds.
The "Base Plate" component allows you to design base plate connections with cast-in anchors. In this case, plates, welds, anchorages, and steel-concrete interaction are analyzed.
In the "Edit Section" dialog box, you can display the buckling shapes of the Finite Strip Method (FSM) as a 3D graphic.
- Design of five types of seismic force-resisting systems (SFRS) includes Special Moment Frame (SMF), Intermediate Moment Frame (IMF), Ordinary Moment Frame (OMF), Ordinary Concentrically Braced Frame (OCBF), and Special Concentrically Braced Frame (SCBF)
- Ductility check of the width-to thickness ratios for webs and flanges
- Calculation of the required strength and stiffness for stability bracing of beams
- Calculation of the maximum spacing for stability bracing of beams
- Calculation of the required strength at hinge locations for stability bracing of beams
- Calculation of the column required strength with the option to neglect all bending moments, shear, and torsion for overstrength limit state
- Design check of column and brace slenderness ratios
