Yes, the rotational deformations are available in CRANEWAY. For this, click "Deformation Analysis" in the list of results. You can then select the output mode "By x-Location" and select the desired support point. The rotational deformation values can be displayed in the Details table.
SLS Rotational Deformations of Crane Runway Girder

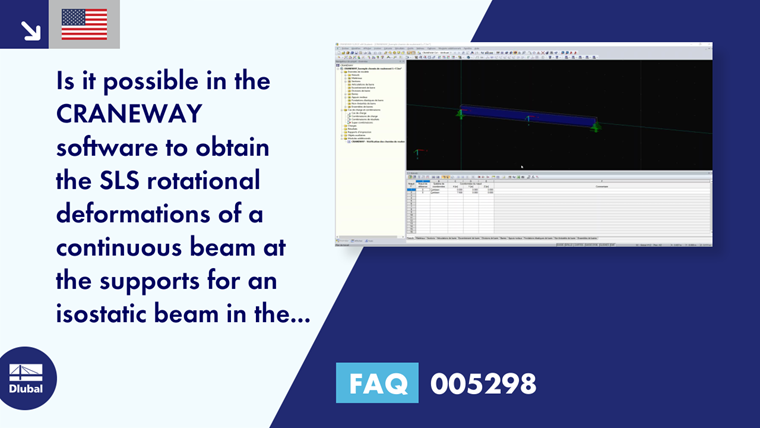

Is it possible in the CRANEWAY software to obtain the SLS rotational deformations of a continuous beam at the supports for an isostatic beam in the web plane?
Answer:
