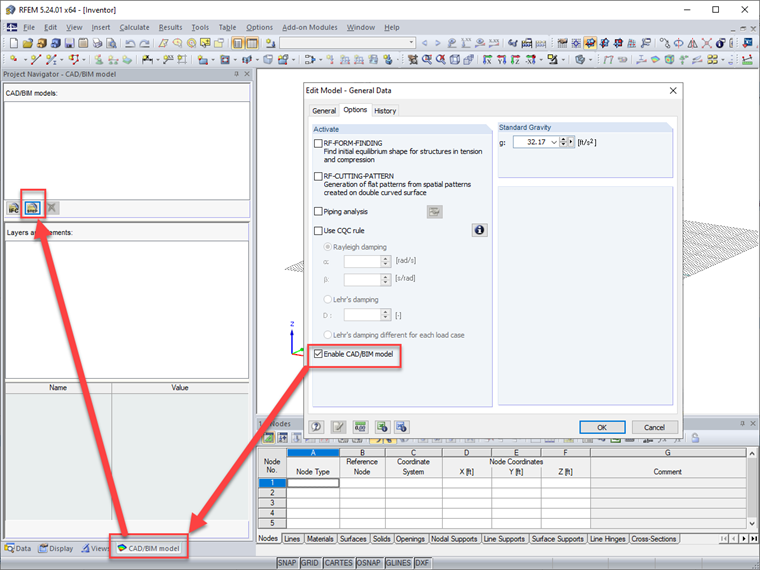

RFEM can communicate with Autodesk Inventor in a limited way. Inventor reads and writes volumetric and geometric information similar to .IFC coordination view files. A .STEP file can be exported from this program. RFEM can then import such files in the BIM/CAD Model with the additional module RF-LINK.
Question
Does RFEM integrate with Autodesk Inventor?
