Answer:

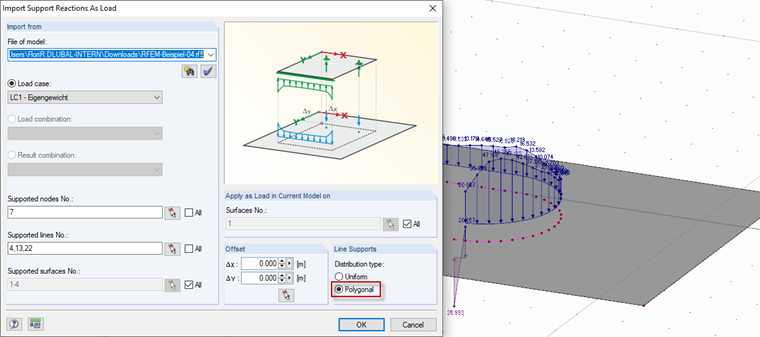

When importing support reactions as loads from another RFEM file, it is possible to select the type of load distribution. In this case, the "Uniform" and "Polygonal" options are available.
Question
Why are the line loads generated via "Tools → Import Support Reactions as Load" not distributed polygonally?
