Model Used in

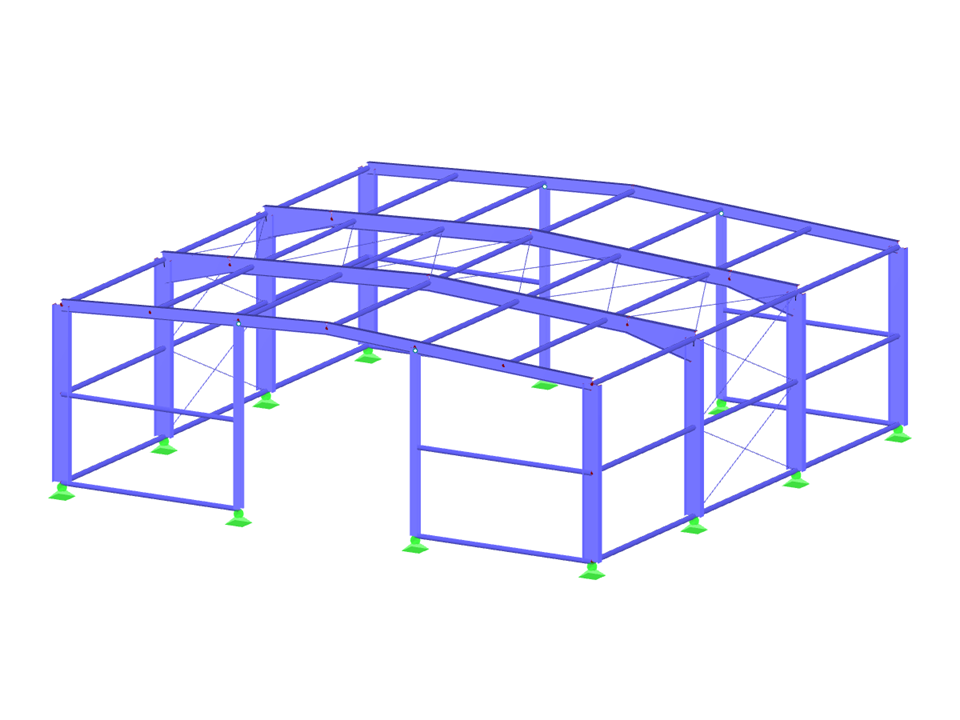

Steel Hall with Gently Pitched Duopitch Roof Shape
Number of Nodes | 56 |
Number of Members | 113 |
Number of Load Cases | 5 |
Total Weight | 12.658 tons |
Dimensions (Metric) | 15.500 x 15.500 x 5.165 m |
Dimensions (Imperial) | 50.85 x 50.85 x 16.95 feet |
Program Version | 8.26.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
