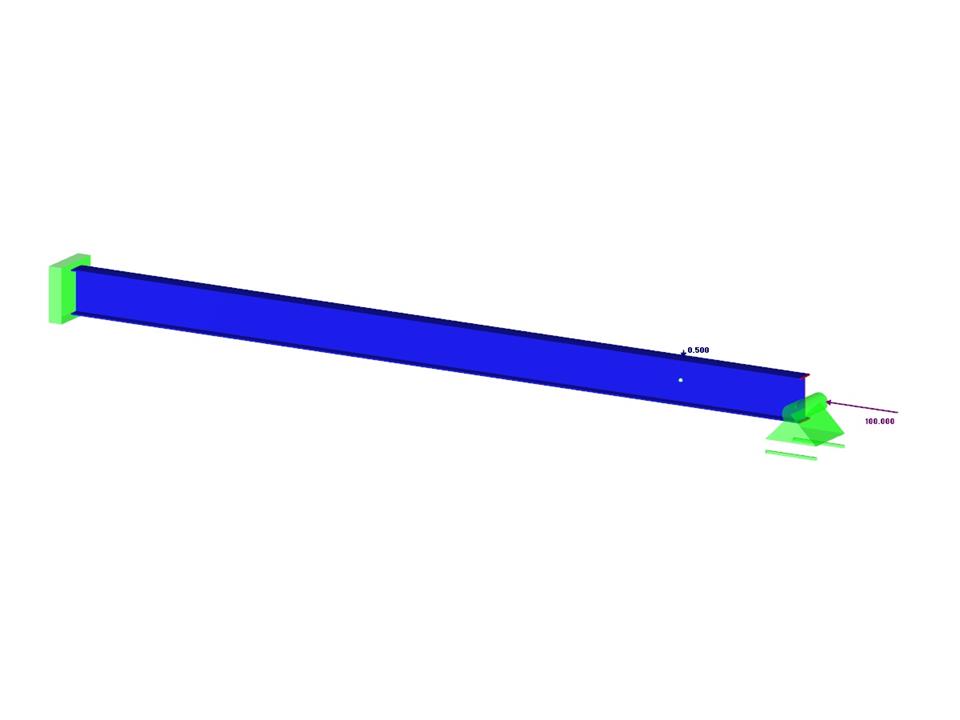

A structure made of I-profile is fully fixed on the left end and embedded into the sliding support on the right end. The structure consists of two segments.
Verification Example 000048 | 3
Number of Nodes | 3 |
Number of Lines | 2 |
Number of Members | 2 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Dimensions (Metric) | 7.200 x 0.000 x 0.000 m |
Dimensions (Imperial) | 23.62 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
