Export Deformed Shapes Using 3D Faces in DXF Files

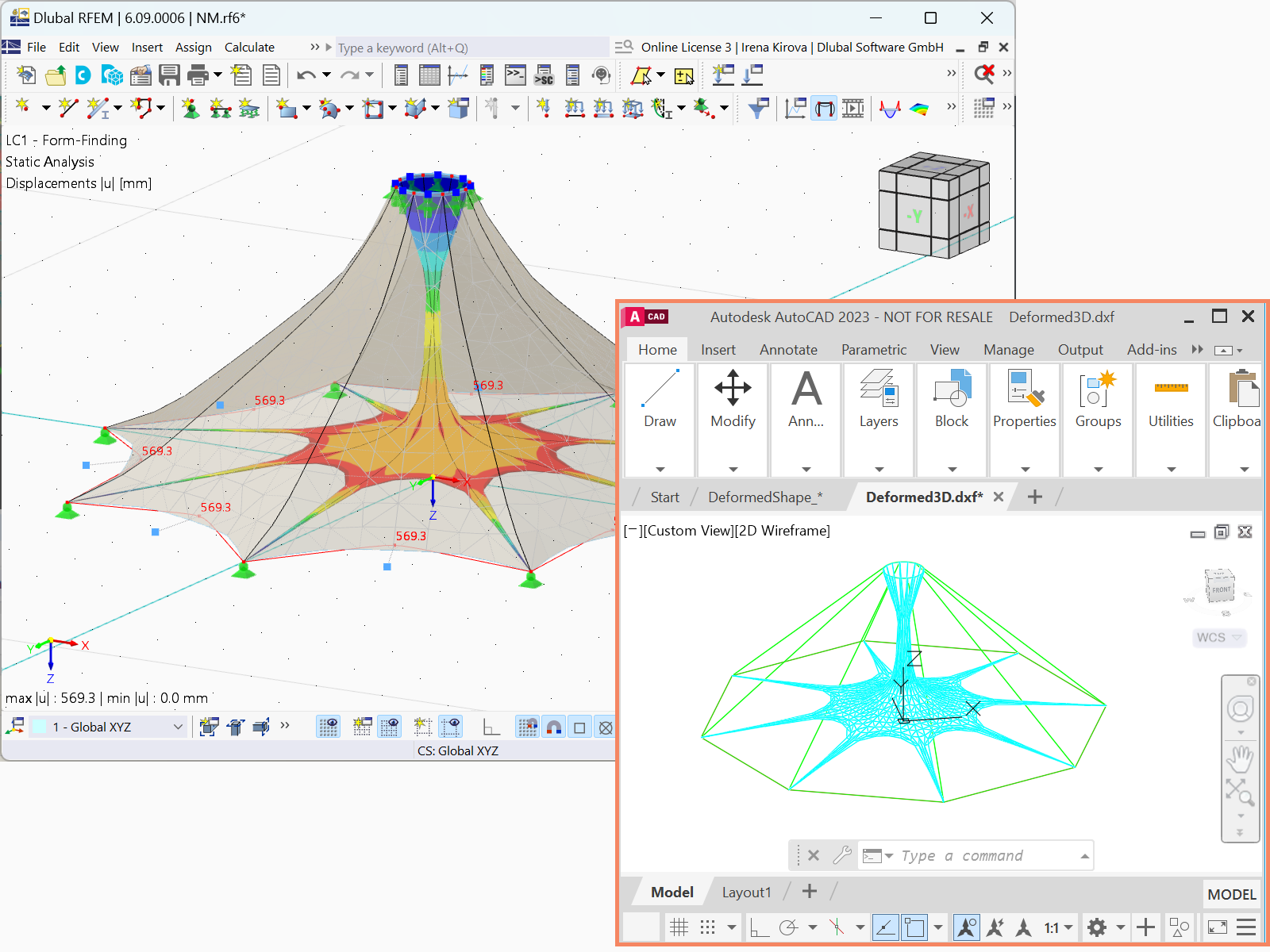

The image displays the RFEM 6 feature to export deformed shapes as 3D faces into DXF files for advanced structural analysis and sharing.
The image illustrates the feature to export deformed shapes from RFEM 6 as 3D faces into DXF files. This allows users to integrate accurate deformation geometry into detailed CAD models, enhancing compatibility and precision in design workflows. This option facilitates sharing and integrating detailed structural analysis results effectively within diverse platforms.
