Export FE Mesh to DXF Files

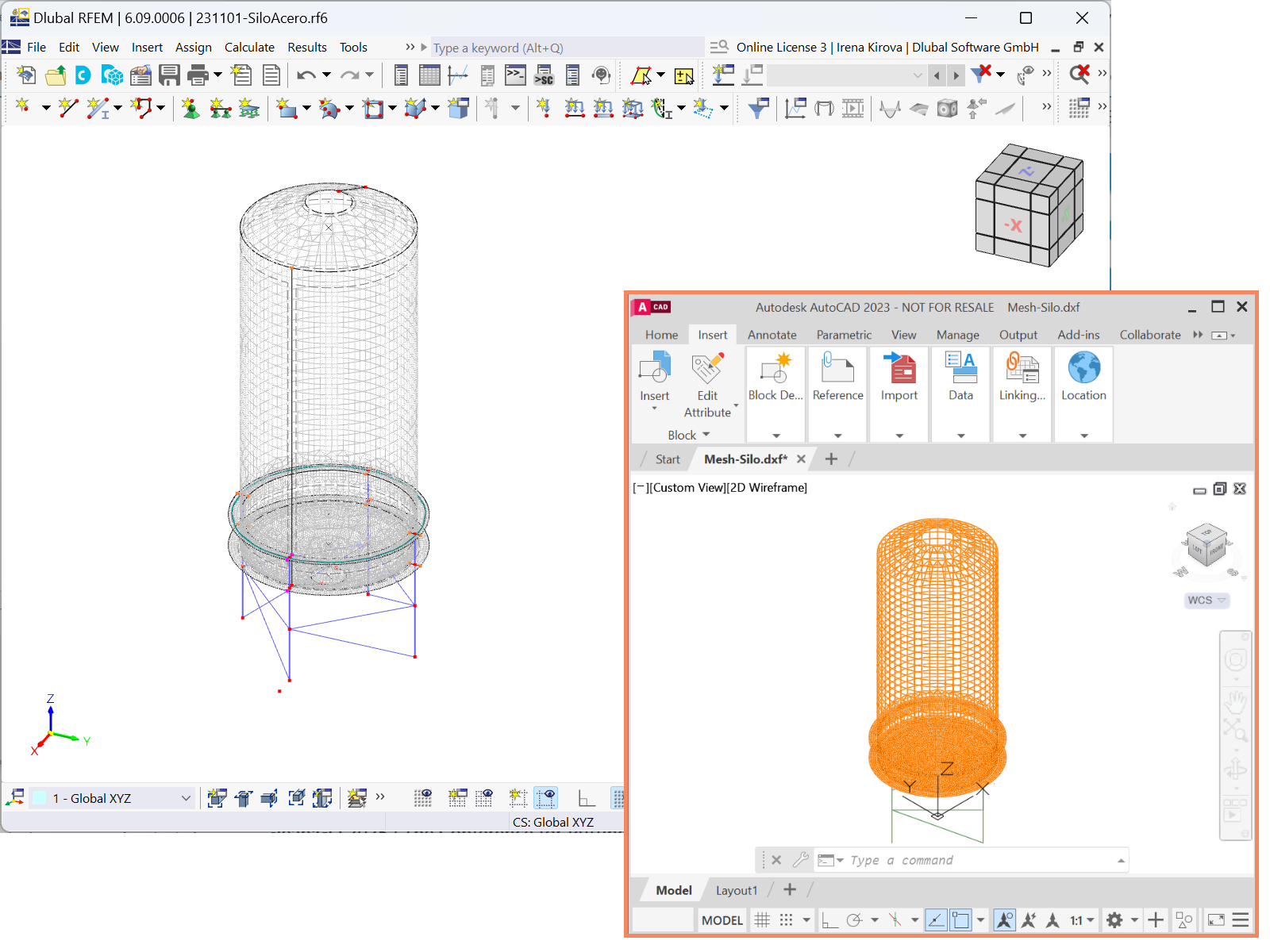

The interface shows the option for exporting a finite element mesh from RFEM 6 to a DXF file.
The image highlights the "Export FE Mesh" option in RFEM 6 when exporting to DXF files. This feature allows users to export the finite element mesh of their structural model for use in other applications or for further analysis. The process involves selecting the desired components and defining export parameters, ensuring compatibility with DXF format. This functionality is essential for interdisciplinary collaboration and detailed analysis.
