Good day,
I'm having this problem with timber beam panel calculation. I don't understand, why some of the generated panel beams don't have hinges in the end ? This way panel transmits bending moments to other elements. I tried adding linear hinge for the panel contour lines, but it gives a rigid link error. And you cannot add hinges to panel beams manually. Maybe any of you have some experience with this beam panel tool ?

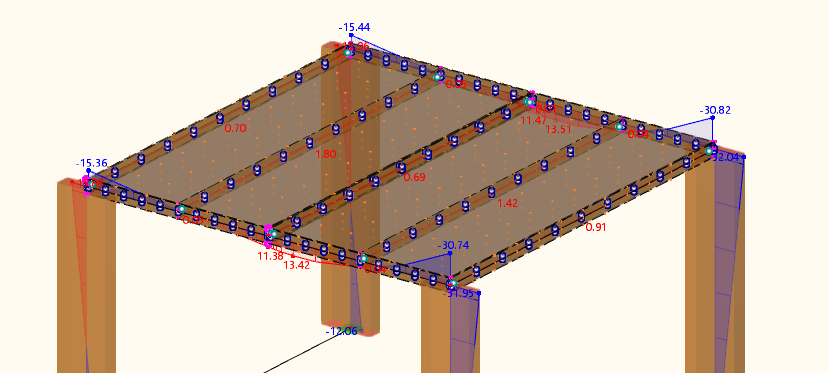

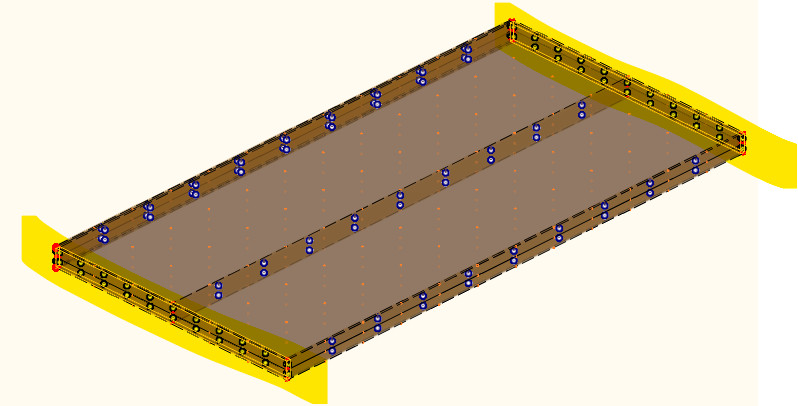

I'm adding some pictures of this problem, highlighted horizontal beams don't have hinges, longitudinal beams have hinges. Also added the calulation model.
I'm having this problem with timber beam panel calculation. I don't understand, why some of the generated panel beams don't have hinges in the end ? This way panel transmits bending moments to other elements. I tried adding linear hinge for the panel contour lines, but it gives a rigid link error. And you cannot add hinges to panel beams manually. Maybe any of you have some experience with this beam panel tool ?
I'm adding some pictures of this problem, highlighted horizontal beams don't have hinges, longitudinal beams have hinges. Also added the calulation model.
