Steel Launching Nose of Bridge Superstructure with Display of Stresses
Steel launching nose on the bridge superstructure with nonlinear stresses.

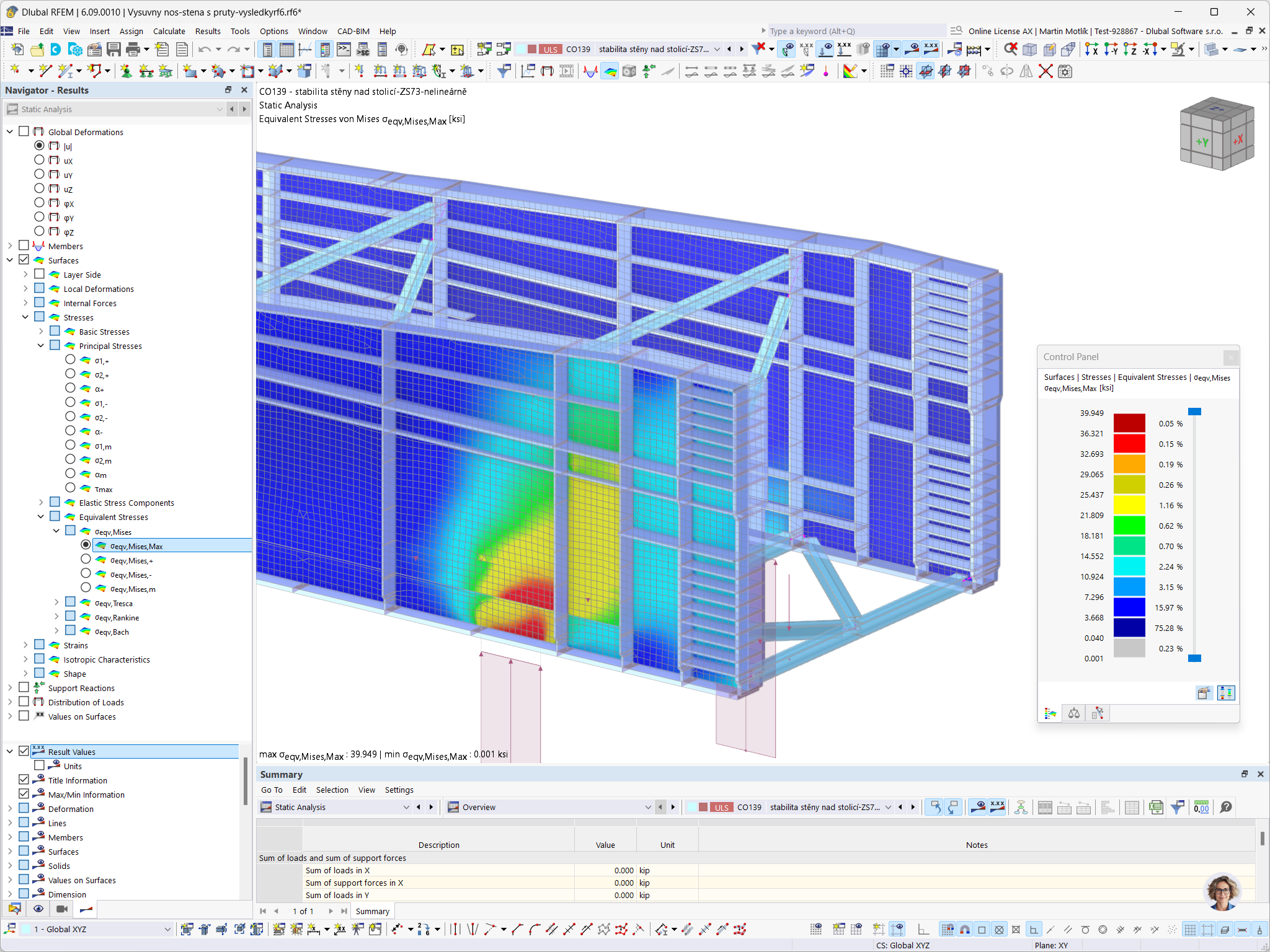

The image shows the steel launching nose of the bridge superstructure, which is part of the model created in RFEM software. This model shows the comparative stresses in the wall of the nose, which were determined by a nonlinear calculation. The computational model was created by Ing. Petr Nečesal, Ing. David Marván, and PIS PECHAL, s.r.o.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 744 |
| Number of Lines | 1140 |
| Number of Members | 978 |
| Number of Surfaces | 20 |
| Number of Load Cases | 172 |
| Number of Load Combinations | 135 |
| Number of Result Combinations | 5 |
| Total Weight | 111,432 t |
| Dimensions (Metric) | 40.420 x 5.400 x 4.467 m |
| Dimensions (Imperial) | 132.61 x 17.72 x 14.66 feet |
| Program Version | 5.36.01 |
