Buckling Shape of Steel Launching Nose of Bridge Superstructure

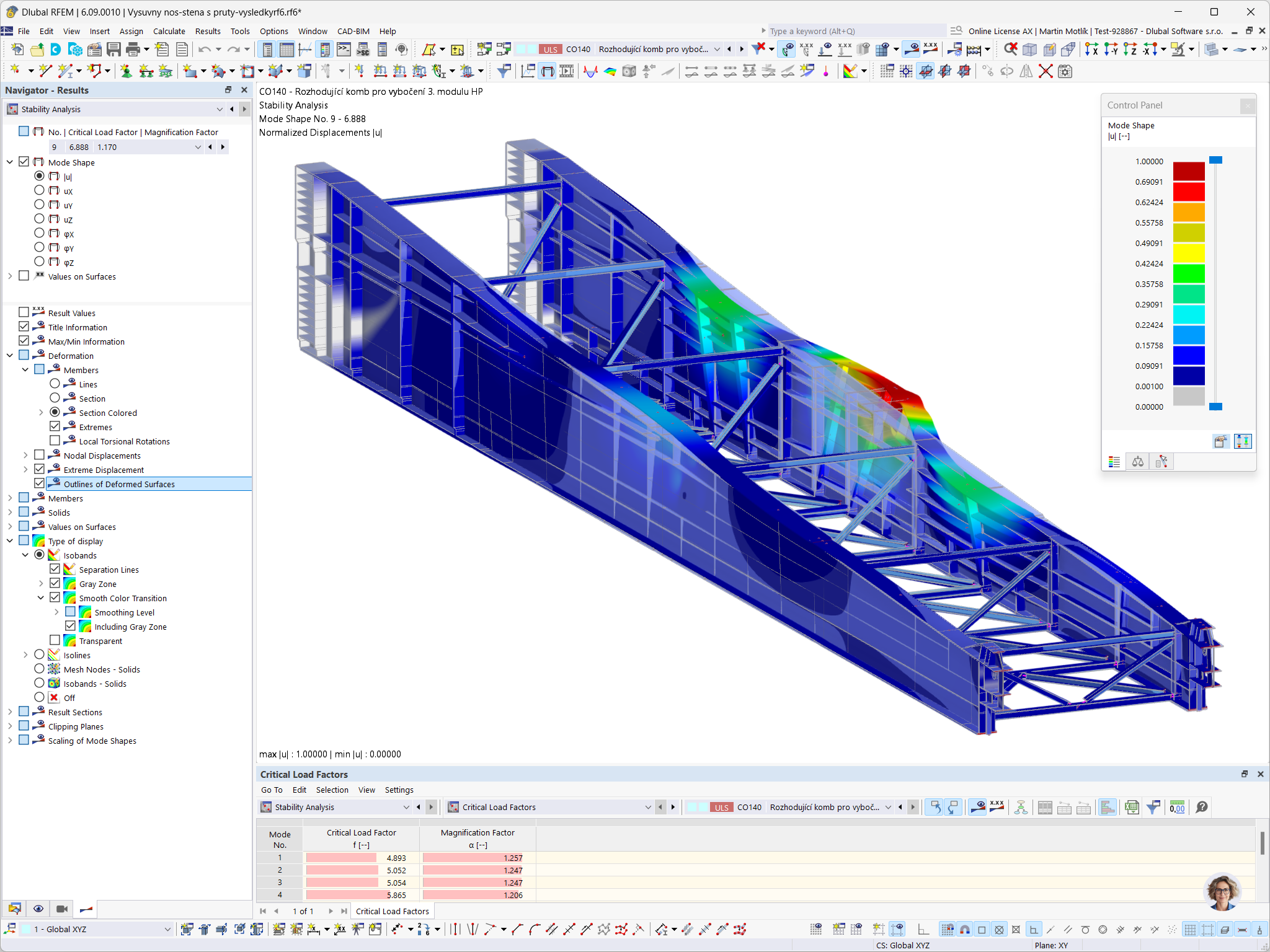

Critical buckling shape of the steel launching nose for the bridge superstructure in the 3rd mode.
The RFEM model shows the steel launching nose of the bridge superstructure. The critical buckling shape of the structure is shown in the third module. The Stability Analysis add-on is used for the analysis to help identify and visualize the instability of the structure under load. The computational model was developed by Ing. Petr Nečesal, Ing. David Marván, and PIS PECHAL, s.r.o.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 744 |
| Number of Lines | 1140 |
| Number of Members | 978 |
| Number of Surfaces | 20 |
| Number of Load Cases | 172 |
| Number of Load Combinations | 135 |
| Number of Result Combinations | 5 |
| Total Weight | 111.432 tons |
| Dimensions (Metric) | 40.420 x 5.400 x 4.467 m |
| Dimensions (Imperial) | 132.61 x 17.72 x 14.66 feet |
| Program Version | 5.36.01 |
